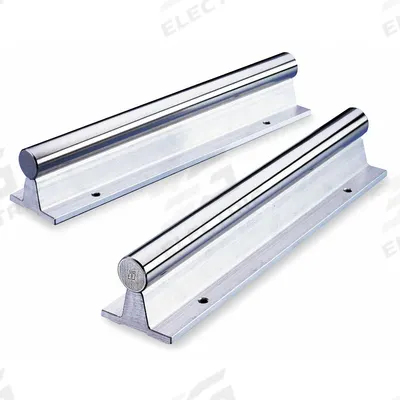

THOMSON Pre-Drilled Linear Shaft Support Rail: 1 in Shaft Dia, 24 in Lg
SKU 3G-OTH-126824
Need installation or engineering help?
Ask a question
Frequently Asked Questions
What is the THOMSON Pre-Drilled Linear Shaft Support Rail used for?
The THOMSON SRA1624 is a low-profile linear support rail designed to mount and guide linear shafts in automation, packaging, and material handling systems. It provides a rigid, pre-drilled base for precise linear motion applications, reducing deflection and ensuring alignment in machinery.
What are the specifications of the THOMSON SRA1624 linear shaft support rail?
The THOMSON SRA1624 has a 1-inch shaft diameter and a 24-inch length, made from steel. It is a pre-drilled low-profile linear support rail, part of THOMSON's linear motion product line. The manufacturer part number is SRA1624, and it is designed for use with compatible linear shafts and bearings.
Where to buy the THOMSON SRA1624 linear shaft support rail worldwide?
3G Electric supplies the THOMSON SRA1624 linear shaft support rail worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we source and deliver this THOMSON component globally.
How to install the THOMSON pre-drilled linear shaft support rail?
Install the THOMSON SRA1624 by mounting it on a flat, rigid surface using the pre-drilled holes. Align the rail parallel to the motion axis, then insert the linear shaft through the support bores. Secure with appropriate fasteners and check for straightness. Follow generic linear rail best practices for torque and alignment.
Used in
Common applications for THOMSONTHOMSON Products
3G Electric supplies THOMSON low profile linear support rail & shaft assemblies. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
