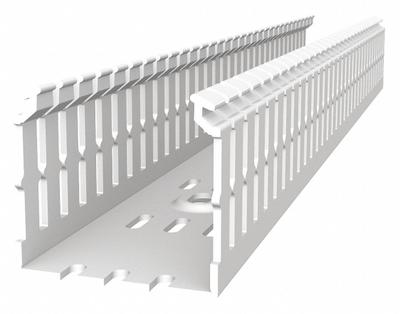

THOMAS & BETTS Wiring Duct: 1 in Nom Wd, 2.2 in Slot Ht, 3 in Nom Ht, 0.2 in Slot Wd, PVC - Screw-Mount Slotted Wiring Ducts & Snap-On Covers
THOMAS & BETTSScrew-Mount Slotted Wiring Ducts & Snap-On Covers

THOMAS & BETTS Wiring Duct: 1 in Nom Wd, 2.2 in Slot Ht, 3 in Nom Ht, 0.2 in Slot Wd, PVC

The THOMAS & BETTS TYD1X3NPW6 is a 1-inch nominal width, screw-mount slotted wiring duct base with a narrow slot wall type, made of PVC in white. It has a 2.2-inch slot height, 3-inch nominal height, 0.2-inch slot…

SKU 3G-OTH-56145

Brand
THOMAS & BETTS
Item
Wiring Duct: 1 in Nom Wd, 2.2 in Slot Ht, 3 in Nom Ht, 0.2 in Slot Wd, PVC
Category
Screw-Mount Slotted Wiring Ducts & Snap-On Covers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

THOMAS & BETTS
Manufacturer Part Number
TYD1X3NPW6
Type
Wiring Duct Base
Lg
72 in
Nom Ht
3 in
Slot Ht
2.2 in
Slot Wd
0.2 in
Wall Type
Narrow Slot
Item [MERCH]
Flush Cover Wiring Duct
Wall Type - Broad
Slotted
Color (Duct, Cover)
White
Compatable Cover Style
Snap-On
Mounting Style (Ducts)
Screw Mount
Material (Duct, Divider, Covers)
PVC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

THOMAS & BETTS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The THOMAS & BETTS TYD1X3NPW6 is a 1-inch nominal width, screw-mount slotted wiring duct base with a narrow slot wall type, made of PVC in white. It has a 2.2-inch slot height, 3-inch nominal height, 0.2-inch slot width, and 72-inch length, designed for use with a snap-on cover (sold separately). This flush cover wiring duct provides organized cable management for industrial electrical installations.

Used in

Common applications for THOMAS & BETTS
Industrial control panel wiring organization — Thomas & Betts TYD series wiring ducts and snap-on covers for cable management.
Power distribution cable splicing — Thomas & Betts open barrel compression connectors for 350 kcmil copper conductors.
Hazardous location conduit systems — Thomas & Betts liquid-tight fittings for Class III environments in textile mills.
Motor control center connections — Thomas & Betts motor lead disconnects for 4/0 AWG wire in switchgear.
Conduit pull points and access — Thomas & Betts C-type and LR-type outlet bodies for RMC and IMC installations.
Panel building with flush covers — Thomas & Betts slotted wiring ducts with white covers for aesthetic and functional cable routing.

THOMAS & BETTS Products

3G Electric supplies THOMAS & BETTS screw-mount slotted wiring ducts & snap-on covers. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
