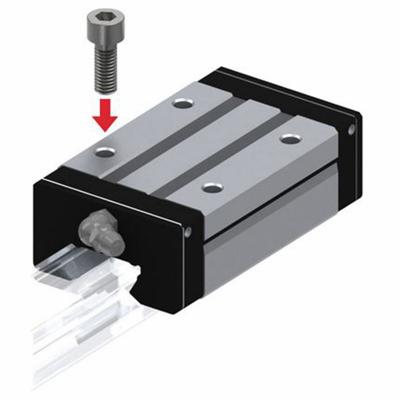

THK Linear Guide Carriage: For 20 mm Rail Wd, Ball, SSR Radial Rail Guide - THK SSR Series Ball Carriages
THKTHK SSR Series Ball Carriages

THK Linear Guide Carriage: For 20 mm Rail Wd, Ball, SSR Radial Rail Guide

The THK SSR20XW1SS is a ball carriage from the SSR Series of radial rail guides, designed for use with a 20 mm rail width. This carriage features a Size 20, is constructed from carbon steel for both the carriage and…

SKU 3G-OTH-120496

Brand
THK
Item
Linear Guide Carriage: For 20 mm Rail Wd, Ball, SSR Radial Rail Guide
Category
THK SSR Series Ball Carriages
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

THK
Manufacturer Part Number
SSR20XW1SS
Type
SSR Radial Rail Guide
Size
20
Features
No Preload
Carriage Ht
22 mm
Roller Material
Carbon Steel
Carriage Material
Carbon Steel
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

THK Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The THK SSR20XW1SS is a ball carriage from the SSR Series of radial rail guides, designed for use with a 20 mm rail width. This carriage features a Size 20, is constructed from carbon steel for both the carriage and roller material, and is specified with No Preload. It has a carriage height of 22 mm and is manufactured by THK.

Used in

Common applications for THK
CNC machine tools — THK SHS series ball carriages and profile rails for precise linear motion in milling and turning centers
Semiconductor wafer handling — THK SSR series radial guides for compact, low-profile stages in cleanroom environments
Automated assembly lines — THK HSR series heavy-load guides for high-rigidity positioning in pick-and-place systems
Material handling equipment — THK SHS series guides for linear axes in conveyor and sorting systems
Medical imaging devices — THK SSR series carriages for smooth, low-friction movement in diagnostic scanners
Packaging machinery — THK SHS series profile rails for high-speed linear motion in cartoners and wrappers
