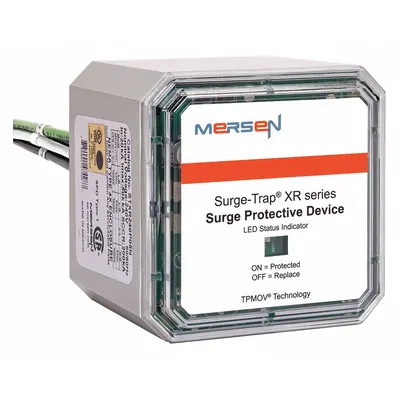

SURGE TRAP Surge Protection Device: Single Phase, 240V AC, 320 V AC - Chase-Nipple External-Mount SPDs
SURGE TRAPChase-Nipple External-Mount SPDs

SURGE TRAP Surge Protection Device: Single Phase, 240V AC, 320 V AC

The SURGE TRAP Surge Protection Device: Single Phase (MPN STXR240P05N) is a chase-nipple external-mount SPD with a polycarbonate enclosure. It operates at 240V AC with a max. continuing operating voltage of 320 V AC…

SKU 3G-OTH-23010

Brand
SURGE TRAP
Item
Surge Protection Device: Single Phase, 240V AC, 320 V AC
Category
Chase-Nipple External-Mount SPDs
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support — the Philippines

Delivery
5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment
Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to
Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

SURGE TRAP
Manufacturer Part Number
STXR240P05N
AC
240V
Voltage
240V AC
Enclosure Material
Polycarbonate
Nominal Discharge Current
20 A
Voltage Protection Rating
1800V (H-G, H-L, L-G, L-L)
Max. Surge Current per Mode
50kA
Max. Continuing Operating Voltage
320 V AC

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SURGE TRAP Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SURGE TRAP Surge Protection Device: Single Phase (MPN STXR240P05N) is a chase-nipple external-mount SPD with a polycarbonate enclosure. It operates at 240V AC with a max. continuing operating voltage of 320 V AC and a voltage protection rating of 1800V (H-G, H-L, L-G, L-L). The device offers a max. surge current per mode of 50kA and a nominal discharge current of 20 A.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the SURGE TRAP STXR240P05N surge protection device used for?

The SURGE TRAP STXR240P05N is a single-phase, chase-nipple external-mount SPD designed to protect industrial equipment from transient overvoltages and lightning surges. It is commonly applied in panelboards, switchgear, and control cabinets where reliable surge suppression is required for 240V AC systems.

What are the specifications of the SURGE TRAP STXR240P05N?

The SURGE TRAP STXR240P05N operates at 240V AC with a max. continuing operating voltage of 320 V AC. It has a voltage protection rating of 1800V (H-G, H-L, L-G, L-L), a max. surge current per mode of 50kA, and a nominal discharge current of 20 A. The enclosure is polycarbonate.

Where to buy the SURGE TRAP STXR240P05N worldwide?

3G Electric supplies the SURGE TRAP STXR240P05N worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time; we source and deliver this SPD to any international destination.

How to install the SURGE TRAP STXR240P05N external-mount SPD?

Install the SURGE TRAP STXR240P05N by mounting it externally via the chase nipple to a panel or enclosure knockout. Connect line, neutral, and ground per the wiring diagram. Ensure the device is properly grounded and the max. continuing operating voltage of 320 V AC is not exceeded. Follow local electrical codes.

Used in

Common applications for SURGE TRAP
Manufacturing plants — SURGE TRAP STXR480Y05N for 480 V AC wye motor control centers
Water treatment facilities — SURGE TRAP STXR208Y05N for 208 V AC wye distribution panels
Commercial buildings — SURGE TRAP STXR240S05N for 120/240 V AC split-phase service entrances
Oil and gas facilities — SURGE TRAP STXR480D05 for 480 V AC delta pump systems
Data centers — SURGE TRAP STXR120P05N for 120 V AC single-phase equipment protection
HVAC systems — SURGE TRAP STXR240P05N for 240 V AC single-phase compressor units
