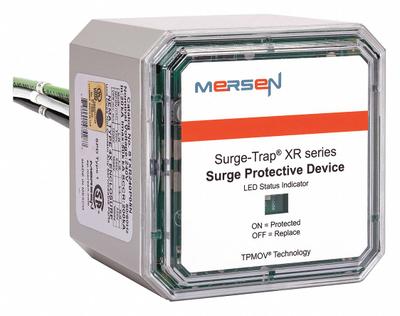

SURGE TRAP Surge Protection Device: Single Phase, 240V AC, 320 V AC - Chase-Nipple External-Mount SPDs
SURGE TRAPChase-Nipple External-Mount SPDs

SURGE TRAP Surge Protection Device: Single Phase, 240V AC, 320 V AC

The SURGE TRAP Surge Protection Device: Single Phase (MPN STXR240P05N) is a chase-nipple external-mount SPD with a polycarbonate enclosure. It operates at 240V AC with a max. continuing operating voltage of 320 V AC…

SKU 3G-OTH-23010

Brand
SURGE TRAP
Item
Surge Protection Device: Single Phase, 240V AC, 320 V AC
Category
Chase-Nipple External-Mount SPDs
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SURGE TRAP
Manufacturer Part Number
STXR240P05N
AC
240V
Voltage
240V AC
Enclosure Material
Polycarbonate
Nominal Discharge Current
20 A
Voltage Protection Rating
1800V (H-G, H-L, L-G, L-L)
Max. Surge Current per Mode
50kA
Max. Continuing Operating Voltage
320 V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SURGE TRAP Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SURGE TRAP Surge Protection Device: Single Phase (MPN STXR240P05N) is a chase-nipple external-mount SPD with a polycarbonate enclosure. It operates at 240V AC with a max. continuing operating voltage of 320 V AC and a voltage protection rating of 1800V (H-G, H-L, L-G, L-L). The device offers a max. surge current per mode of 50kA and a nominal discharge current of 20 A.

Used in

Common applications for SURGE TRAP
Manufacturing plants — SURGE TRAP STXR480Y05N for 480 V AC wye motor control centers
Water treatment facilities — SURGE TRAP STXR208Y05N for 208 V AC wye distribution panels
Commercial buildings — SURGE TRAP STXR240S05N for 120/240 V AC split-phase service entrances
Oil and gas facilities — SURGE TRAP STXR480D05 for 480 V AC delta pump systems
Data centers — SURGE TRAP STXR120P05N for 120 V AC single-phase equipment protection
HVAC systems — SURGE TRAP STXR240P05N for 240 V AC single-phase compressor units
