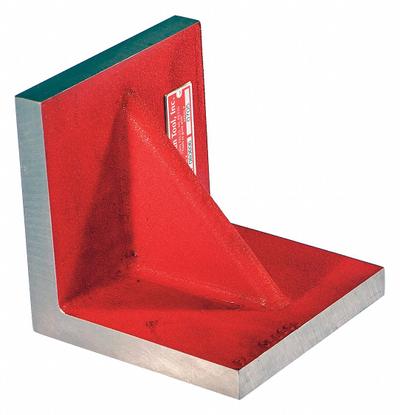

SUBURBAN Angle Plate: Cast Iron, 6 in L x 8 in W x 10 in H, 0.0005 in Square & Parallel - Plain Cast Iron Angle Plates
SUBURBANPlain Cast Iron Angle Plates

SUBURBAN Angle Plate: Cast Iron, 6 in L x 8 in W x 10 in H, 0.0005 in Square & Parallel

The SUBURBAN Angle Plate: Cast Iron is a plain cast iron angle plate designed for precision layout and inspection work. It measures 6 in L x 8 in W x 10 in H, with a flatness of 0.0005 in and parallelism of 0.002 in…

SKU 3G-OTH-182514

Brand
SUBURBAN
Item
Angle Plate: Cast Iron, 6 in L x 8 in W x 10 in H, 0.0005 in Square & Parallel
Category
Plain Cast Iron Angle Plates
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SUBURBAN
Manufacturer Part Number
PAW-081006-G
Type
Ground
H
6 in L x 8 in W x 10 in
Flatness
0.0005 in
Parallelism
0.002 in
Square & Parallel
0.0005 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SUBURBAN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SUBURBAN Angle Plate: Cast Iron is a plain cast iron angle plate designed for precision layout and inspection work. It measures 6 in L x 8 in W x 10 in H, with a flatness of 0.0005 in and parallelism of 0.002 in, and is ground to a square and parallel finish. This product is manufactured under part number PAW-081006-G.

Used in

Common applications for SUBURBAN
Surface grinding setup — SUBURBAN magnetic sine plates (e.g., MSP-126-S2) for angular workpiece positioning
Inspection and quality control — SUBURBAN steel straight edges (e.g., SE-12-TS) for checking flatness of machine tables
Toolroom fixturing — SUBURBAN slotted cast iron angle plates (e.g., SAW-120908) for holding workpieces during milling
Compound angle machining — SUBURBAN compound sine plates (e.g., SPC-1212-S2) for multi-axis angular setups
Precision grinding of small parts — SUBURBAN hardened steel angle plates (e.g., AP-334-S0) with 0.0002 in tolerance for tight-tolerance workholding
