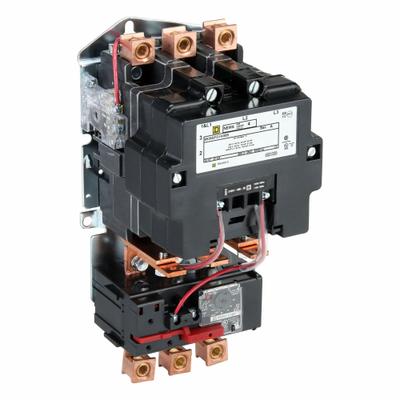

SQUARE D NEMA Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 4 - Non-Reversing Starters with Electronic Overloads
SQUARE DNon-Reversing Starters with Electronic Overloads

SQUARE D NEMA Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 4

The SQUARE D NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, model 8536SFO1V02H30S. It is a three-phase, NEMA Size 4 unit rated at 135 A with a 110/120V AC coil voltage. This starter…

SKU 3G-OTH-43263

Brand
SQUARE D
Item
NEMA Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 4
Category
Non-Reversing Starters with Electronic Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
8536SFO1V02H30S
Type
NEMA Size 4, 135 A
Phase
Three
Poles
3
AC Coil
120V
Operator
None
Coil Voltage
110/120V AC
Operator Controls
None
Includes Pilot Light
No
Thermal Units Required
None (Not Applicable to Electronic Overloads)
Terminal Connection Type
Screw Clamp Terminals
Auxiliary Contacts Included
No Auxiliary Contacts Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, model 8536SFO1V02H30S. It is a three-phase, NEMA Size 4 unit rated at 135 A with a 110/120V AC coil voltage. This starter features screw clamp terminals and includes no auxiliary contacts, pilot light, or operator controls.
