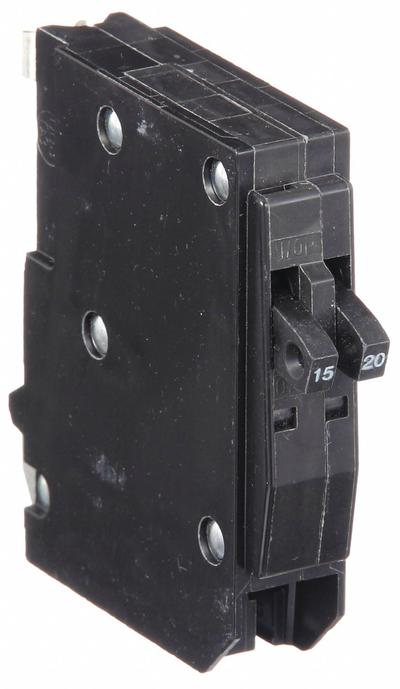

SQUARE D Miniature Circuit Breaker: 15/20 A, 120/240V AC, Single Phase - QOT Series, Plug-In Square D Miniature Circuit Breakers
SQUARE DQOT Series, Plug-In Square D Miniature Circuit Breakers

SQUARE D Miniature Circuit Breaker: 15/20 A, 120/240V AC, Single Phase

The SQUARE D QOT Series Miniature Circuit Breaker (MPN QOT1520) is a plug-in, single-phase breaker rated 15/20 A at 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. Designed for use with QO Load Centers…

SKU 3G-OTH-22700

Brand
SQUARE D
Item
Miniature Circuit Breaker: 15/20 A, 120/240V AC, Single Phase
Category
QOT Series, Plug-In Square D Miniature Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
QOT1520
Type
Single Phase, 10kA at 120/240V AC
AC
120/240V
Amps
15/20 A
Phase
Single
Poles
1
For Use With
QO Load Centers and NQ Panelboards
Max. AIR Rating
10kA at 120/240V AC
AC Voltage Rating
120/240V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D QOT Series Miniature Circuit Breaker (MPN QOT1520) is a plug-in, single-phase breaker rated 15/20 A at 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. Designed for use with QO Load Centers and NQ Panelboards, this single-pole unit provides overcurrent protection in a compact form factor.

Used in

Common applications for SQUARE D
Commercial building electrical panels — Square D QO series plug-in circuit breakers for branch circuit protection
Industrial motor control centers — Square D QOB series bolt-on breakers in NQOD panelboards
Heating equipment installations — Square D QOU series unit-mount breakers for overcurrent protection
Outdoor electrical distribution — Square D L-Frame enclosures housing LAL/LHL breakers for 400 A service
Indoor facility power distribution — Square D Q-Frame enclosures with QBL/QDL breakers for 225 A circuits
Retrofit and replacement in existing Square D load centers — QO series breakers for 120/240V AC systems
