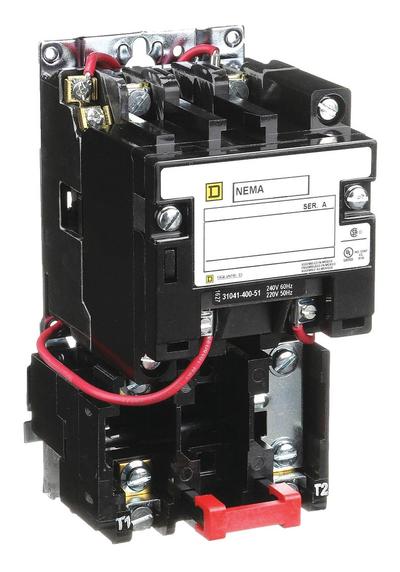

SQUARE D Magnetic Motor Starter: Non-Reversing, 2 Poles, NEMA Size 1, 27 A - Non-Reversing Starters with Thermal Overloads
SQUARE DNon-Reversing Starters with Thermal Overloads

SQUARE D Magnetic Motor Starter: Non-Reversing, 2 Poles, NEMA Size 1, 27 A

The SQUARE D Magnetic Motor Starter is a non-reversing starter with thermal overloads, designed for single-phase applications. This NEMA Size 1 unit features a 240V AC coil, 27 A rating, and 2 poles, with screw clamp…

SKU 3G-OTH-40906

Brand
SQUARE D
Item
Magnetic Motor Starter: Non-Reversing, 2 Poles, NEMA Size 1, 27 A
Category
Non-Reversing Starters with Thermal Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
8536SCO1V03
Type
NEMA Size 1, 27 A
Phase
Single
Poles
2
AC Coil
240V
Operator
None
Coil Voltage
240V AC
Operator Controls
None
Includes Pilot Light
No
Thermal Units Required
1 Melting Alloy Unit (Not Included)
Terminal Connection Type
Screw Clamp Terminals
Auxiliary Contacts Included
No Auxiliary Contacts Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D Magnetic Motor Starter is a non-reversing starter with thermal overloads, designed for single-phase applications. This NEMA Size 1 unit features a 240V AC coil, 27 A rating, and 2 poles, with screw clamp terminals. It requires one melting alloy thermal unit (not included) and includes no auxiliary contacts, pilot light, or operator controls.
