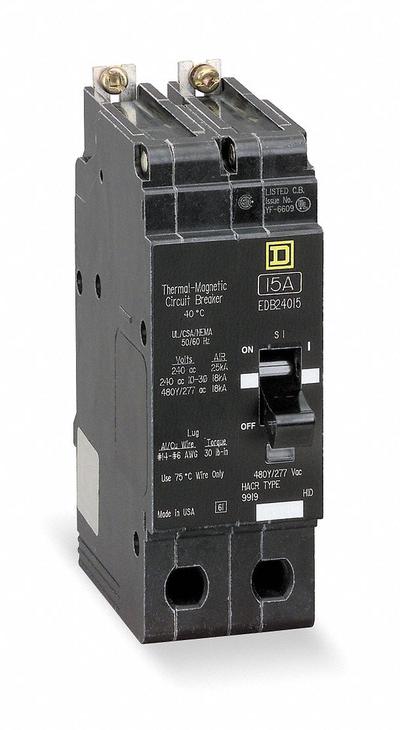

SQUARE D Miniature Circuit Breaker: 35 A, 277/480V AC, Single Phase, 18kA at 277/480V AC - EDB & EGB Series, Bolt-On Square D Miniature Circuit Breakers
SQUARE DEDB & EGB Series, Bolt-On Square D Miniature Circuit Breakers

SQUARE D Miniature Circuit Breaker: 35 A, 277/480V AC, Single Phase, 18kA at 277/480V AC

The SQUARE D EDB24035 is a 35 A, single-phase miniature circuit breaker from the EDB & EGB Series, rated for 277/480V AC with a maximum AIR rating of 18kA at 277/480V AC. This bolt-on, 2-pole breaker is designed for…

SKU 3G-OTH-22230

Brand
SQUARE D
Item
Miniature Circuit Breaker: 35 A, 277/480V AC, Single Phase, 18kA at 277/480V AC
Category
EDB & EGB Series, Bolt-On Square D Miniature Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
EDB24035
Type
Single Phase, 18kA at 277/480V AC
AC
277/480V
Amps
35 A
Phase
Single
Poles
2
For Use With
Square D NF Panelboards
Max. AIR Rating
18kA at 277/480V AC
AC Voltage Rating
277/480V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D EDB24035 is a 35 A, single-phase miniature circuit breaker from the EDB & EGB Series, rated for 277/480V AC with a maximum AIR rating of 18kA at 277/480V AC. This bolt-on, 2-pole breaker is designed for use with Square D NF Panelboards.
