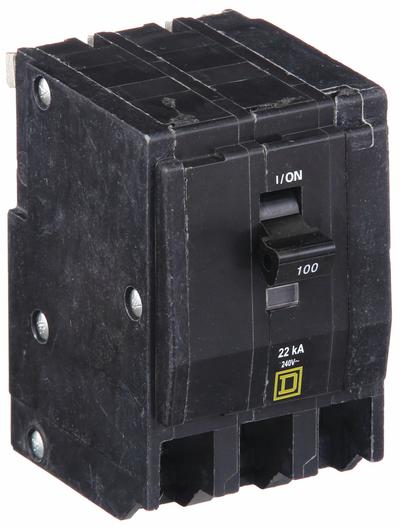

SQUARE D Miniature Circuit Breaker: 100 A, 120/240V AC, Three Phase, 22kA at 120/240V AC - QO Series, Plug-In Square D Miniature Circuit Breakers
SQUARE DQO Series, Plug-In Square D Miniature Circuit Breakers

SQUARE D Miniature Circuit Breaker: 100 A, 120/240V AC, Three Phase, 22kA at 120/240V AC

The SQUARE D QO3100VH is a three-pole, 100 A miniature circuit breaker from the QO Series, designed for plug-in installation in QO Load Centers and NQ Panelboards. It is rated for 120/240V AC with a maximum AIR…

SKU 3G-OTH-21227

Brand
SQUARE D
Item
Miniature Circuit Breaker: 100 A, 120/240V AC, Three Phase, 22kA at 120/240V AC
Category
QO Series, Plug-In Square D Miniature Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
QO3100VH
Type
Three Phase, 22kA at 120/240V AC
AC
120/240V
Amps
100 A
Phase
Three
Poles
3
For Use With
QO Load Centers and NQ Panelboards
Max. AIR Rating
22kA at 120/240V AC
AC Voltage Rating
120/240V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D QO3100VH is a three-pole, 100 A miniature circuit breaker from the QO Series, designed for plug-in installation in QO Load Centers and NQ Panelboards. It is rated for 120/240V AC with a maximum AIR rating of 22kA at 120/240V AC. This three-phase breaker provides overcurrent protection for industrial electrical distribution systems.

Used in

Common applications for SQUARE D
Commercial building electrical panels — Square D QO series plug-in circuit breakers for branch circuit protection
Industrial motor control centers — Square D QOB series bolt-on breakers in NQOD panelboards
Heating equipment installations — Square D QOU series unit-mount breakers for overcurrent protection
Outdoor electrical distribution — Square D L-Frame enclosures housing LAL/LHL breakers for 400 A service
Indoor facility power distribution — Square D Q-Frame enclosures with QBL/QDL breakers for 225 A circuits
Retrofit and replacement in existing Square D load centers — QO series breakers for 120/240V AC systems
