SPEED WIRING PRODUCTS Connector System: TE Connectivity, MATE-N-LOK, 9 Poles - Industrial & Commercial Low-Power & Signal Connector Assemblies
SPEED WIRING PRODUCTSIndustrial & Commercial Low-Power & Signal Connector Assemblies

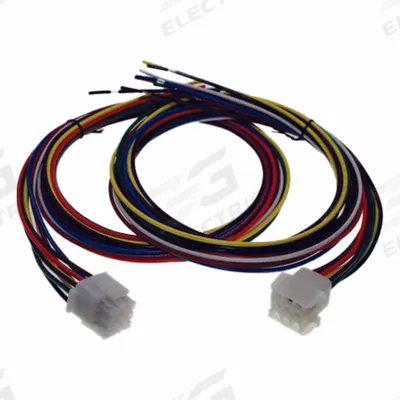

SPEED WIRING PRODUCTS Connector System: TE Connectivity, MATE-N-LOK, 9 Poles

The SPEED WIRING PRODUCTS Connector System is a TE Connectivity MATE-N-LOK industrial and commercial low-power and signal connector assembly (SKU 823KD1, MPN HD-09-4848). This 9-pole kit includes one plug with male…

SKU 3G-OTH-10590

Brand
SPEED WIRING PRODUCTS
Item
Connector System: TE Connectivity, MATE-N-LOK, 9 Poles
Category
Industrial & Commercial Low-Power & Signal Connector Assemblies
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SPEED WIRING PRODUCTS
Manufacturer Part Number
HD-09-4848
Type
MATE-N-LOK
Poles
9
Wire Size
18 AWG
Wire Type
Hookup & Lead Wire (UL 1015)
Wire Color
Orange
Wire Lead Lg
48 in
Current Rating
8.5 A
Voltage Rating
600V AC
Number of Poles
9
Wire Jacket Material
PVC
Kit Contents - Description
(1) Plug with Male Contacts
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SPEED WIRING PRODUCTS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SPEED WIRING PRODUCTS Connector System is a TE Connectivity MATE-N-LOK industrial and commercial low-power and signal connector assembly (SKU 823KD1, MPN HD-09-4848). This 9-pole kit includes one plug with male contacts, featuring 18 AWG orange hookup and lead wire (UL 1015) with PVC jacket, rated at 8.5 A and 600V AC.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the SPEED WIRING PRODUCTS connector system used for?

This TE Connectivity MATE-N-LOK connector system is used for industrial and commercial low-power and signal connections. It is suitable for applications requiring a 9-pole plug with male contacts, 18 AWG wire, and a 600V AC rating, such as control panels and equipment wiring.

What are the specifications of the SPEED WIRING PRODUCTS connector system?

The connector system (MPN HD-09-4848) has 9 poles, a current rating of 8.5 A, and a voltage rating of 600V AC. It uses 18 AWG orange hookup and lead wire (UL 1015) with PVC jacket. The kit includes one plug with male contacts.

Where to buy the SPEED WIRING PRODUCTS connector system worldwide?

3G Electric supplies the SPEED WIRING PRODUCTS connector system worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us to source this TE Connectivity MATE-N-LOK connector assembly.

How to install the SPEED WIRING PRODUCTS connector system?

Installation involves inserting the 18 AWG wire into the male contacts of the plug, ensuring proper crimping per TE Connectivity MATE-N-LOK guidelines. Secure the plug housing and verify polarity. Always follow standard low-voltage wiring practices and consult the manufacturer's datasheet for torque and mating instructions.

Used in

Common applications for SPEED WIRING PRODUCTS
Automotive wiring harness repair — Deutsch DTM 4-pole and 6-pole assemblies for DC power connections in vehicles and off-road equipment.
Industrial control panels — Molex .093 2-pole and 6-pole assemblies for low-power signal and control circuits up to 250V AC.
Power distribution in machinery — Molex .084 Power 2-pole assembly for 12 A, 250V AC connections in industrial equipment.
Commercial HVAC systems — TE Connectivity MATE-N-LOK 6-pole and 9-pole assemblies for low-power signal and interlock circuits rated at 600V AC.
Material handling equipment — Deutsch DTM assemblies with 72-inch leads for remote sensor or actuator connections in harsh environments.
Lighting and signage — Molex .093 2-pole assemblies with 48-inch leads for low-voltage AC power connections in commercial installations.
