SNAP-TITEH Series Hydraulic Quick-Connect Coupling Bodies

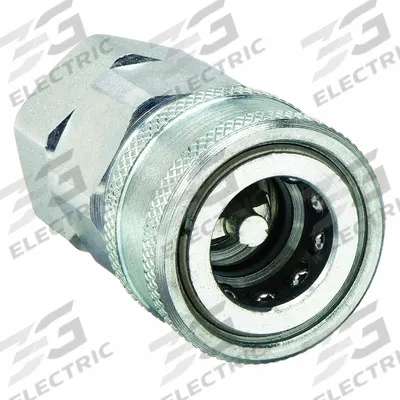

SNAP-TITE Hydraulic Quick Connect Hose Coupling: 1 in, Steel, 132.49 lpm Max. Flow Rate

SKU 3G-OTH-462722

Brand

SNAP-TITE

Item

Hydraulic Quick Connect Hose Coupling: 1 in, Steel, 132.49 lpm Max. Flow Rate

Technical Specifications

SNAP-TITE

Manufacturer Part Number

VHC16-16EF

Type

Steel, 132.49 lpm Max. Flow Rate, Nitrile

Thread Size

1"-5/16-12

Seal Material

Nitrile

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

SNAP-TITE Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SNAP-TITE H Series Hydraulic Quick-Connect Coupling Body (SKU 20LH79, MPN VHC16-16EF) is a steel coupling with a 1"-5/16-12 thread size, a maximum flow rate of 132.49 lpm, and a nitrile seal. 3G Electric interprets your demand for this genuine SNAP-TITE component, sources it, and supports your application across 14 industrial departments — with specialist depth in pumps and controls as an authorised distributor.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the SNAP-TITE VHC16-16EF hydraulic quick connect coupling used for?

The SNAP-TITE VHC16-16EF is a steel hydraulic quick-connect coupling body used in fluid power systems for rapid connection and disconnection of hydraulic lines. It is common in mobile equipment, industrial machinery, and high-flow applications requiring a reliable, leak-free seal.

What are the specifications of the SNAP-TITE VHC16-16EF coupling?

The SNAP-TITE VHC16-16EF coupling has a 1"-5/16-12 thread size, a maximum flow rate of 132.49 lpm, a steel body, and a nitrile seal. It is part of the H Series hydraulic quick-connect coupling bodies and is manufactured by SNAP-TITE.

Where to buy the SNAP-TITE VHC16-16EF coupling worldwide?

3G Electric supplies the genuine SNAP-TITE VHC16-16EF coupling worldwide. We handle full logistics, customs clearance, and delivery to your site. As a global industrial solutions provider, we source this component and support your application across 14 industrial departments.

How to select the correct SNAP-TITE hydraulic quick connect coupling?

To select the correct SNAP-TITE coupling, match the thread size (1"-5/16-12 for the VHC16-16EF), seal material compatibility with your fluid (nitrile for petroleum-based oils), and maximum flow rate (132.49 lpm). Verify the coupling body series (H Series) matches your mating half.

Used in

Common applications for SNAP-TITE

Hydraulic tool maintenance — SNAP-TITE IH Series couplings (e.g., VIHC6-6F) for quick hose connections in hydraulic wrenches and crimpers.

Agricultural equipment — SNAP-TITE IH Series couplings (e.g., VIHC4-4M) for hydraulic lines on tractors and harvesters.

Construction machinery — SNAP-TITE IH Series couplings (e.g., VIHC8-8F) for hydraulic circuits on excavators and loaders.

Industrial fluid power systems — SNAP-TITE IH Series couplings (e.g., VIHC12-12F) for connecting hydraulic power units to actuators.

Mobile hydraulic systems — SNAP-TITE IH Series couplings (e.g., VIHC6-6M) for quick disconnects on forklifts and aerial lifts.
