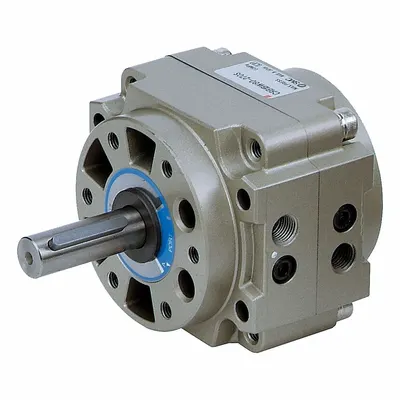

SMC Rotary Actuator: Single Vane Actuator, 90° Rotation Angle, 24.2 N-m Output Torque
The SMC Rotary Actuator: Single Vane Actuator (MPN CDRB1BW50-90S) is a vane-style rotary actuator featuring a 90° rotation angle and 24.2 N-m output torque. It includes a magnetic piston, a basic configuration…
SKU 3G-OTH-161094
Also listed as: CDRB1BW5090S · CDRB1BW50 90S
Local availability & support — the Philippines
- Delivery
- 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
- Payment
- Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
- Ships to
- Manila, Quezon City, Cebu, Davao, Batangas
Need installation or engineering help?
Ask a question
Product Description
The SMC Rotary Actuator: Single Vane Actuator (MPN CDRB1BW50-90S) is a vane-style rotary actuator featuring a 90° rotation angle and 24.2 N-m output torque. It includes a magnetic piston, a basic configuration, metric dimensions, and side ported ports with 1/8 in BSPT connections.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the SMC CDRB1BW50-90S rotary actuator used for?
The SMC CDRB1BW50-90S single vane actuator is used for precise 90° rotary motion in industrial automation, such as positioning, clamping, and diverting on assembly lines or packaging machinery. Its 24.2 N-m torque and magnetic piston suit applications requiring reliable angular positioning.
What are the specifications of the SMC CDRB1BW50-90S?
The SMC CDRB1BW50-90S is a single vane rotary actuator with a 90° rotation angle and 24.2 N-m output torque. It features a magnetic piston, basic configuration, metric dimensions, and side ported ports with 1/8 in BSPT connections. The manufacturer part number is CDRB1BW50-90S.
Where to buy the SMC CDRB1BW50-90S worldwide?
You can source the SMC CDRB1BW50-90S rotary actuator through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this SMC vane actuator.
How to select the right SMC rotary actuator for your application?
To select the right SMC rotary actuator, match the required rotation angle (e.g., 90° for the CDRB1BW50-90S) and output torque (24.2 N-m) to your load and speed needs. Consider port size (1/8 in BSPT), mounting style, and whether a magnetic piston for position sensing is needed.
