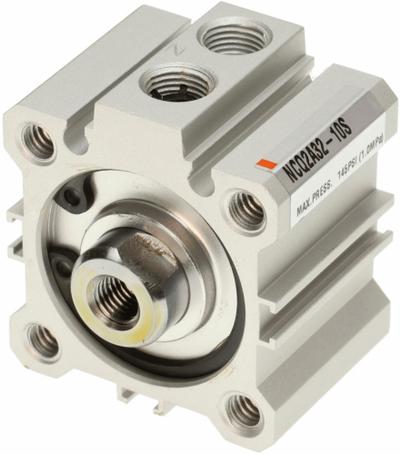

SMC Compact Cylinder: 32 mm Bore Dia, 15 mm Stroke Lg, Tapped Hole Mounting - Basic Mount Compact Cylinders
SMCBasic Mount Compact Cylinders

SMC Compact Cylinder: 32 mm Bore Dia, 15 mm Stroke Lg, Tapped Hole Mounting

The SMC NCQ2 Compact Cylinder (SKU 826FZ9) is a basic mount, single-rod cylinder with a 32 mm bore diameter and 15 mm stroke length. It features a tapped hole mounting style, a rotating rod design, and is constructed…

SKU 3G-OTH-189368

Brand
SMC
Item
Compact Cylinder: 32 mm Bore Dia, 15 mm Stroke Lg, Tapped Hole Mounting
Category
Basic Mount Compact Cylinders
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SMC
Manufacturer Part Number
NCQ2A32-15DMZ
Type
Tapped Hole Mounting, Aluminum
NPT
1/8 in
Stroke Lg
15 mm
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SMC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SMC NCQ2 Compact Cylinder (SKU 826FZ9) is a basic mount, single-rod cylinder with a 32 mm bore diameter and 15 mm stroke length. It features a tapped hole mounting style, a rotating rod design, and is constructed from aluminum with a 1/8 in NPT port. This model (MPN NCQ2A32-15DMZ) is part of SMC's NCQ2 series.

Used in

Common applications for SMC
Automotive assembly — SMC ZP3 flat vacuum pads for handling small components in pick-and-place robots
Semiconductor manufacturing — SMC ZM series vacuum generators with needle valves for precise wafer handling
Food packaging — SMC AW-D series filter regulators for clean compressed air in pneumatic actuators
General industrial automation — SMC AS2211F speed control valves for regulating cylinder speeds in conveyor systems
Vacuum conveying — SMC ZH series box-type vacuum generators for material transport in packaging lines
Machine tool coolant systems — SMC ZF series in-line filters to protect vacuum ejectors from debris

SMC Products

3G Electric supplies SMC basic mount compact cylinders. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
