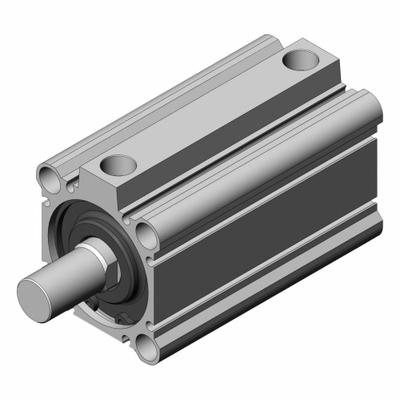

SMC Compact Cylinder: 50 mm Bore Dia, 75 mm Stroke Lg, Through Hole Mounting

The SMC Compact Cylinder (MPN CDQ2B50-75DCMZ) is a through-hole mount compact cylinder from the CQ2 series, featuring a 50 mm bore diameter and 75 mm stroke length. It is a single-rod, rotating-rod design with a 1/4…

SKU 3G-OTH-189601

Brand
SMC
Item
Compact Cylinder: 50 mm Bore Dia, 75 mm Stroke Lg, Through Hole Mounting
Category
Through Hole Mount Compact Cylinders
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SMC
Manufacturer Part Number
CDQ2B50-75DCMZ
Type
Through Hole Mounting, Aluminum
BSPT
1/4 in
Stroke Lg
75 mm
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SMC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SMC Compact Cylinder (MPN CDQ2B50-75DCMZ) is a through-hole mount compact cylinder from the CQ2 series, featuring a 50 mm bore diameter and 75 mm stroke length. It is a single-rod, rotating-rod design with a 1/4 in BSPT port, constructed from aluminum. This product is suitable for applications requiring a compact, through-hole mounting pneumatic actuator.
