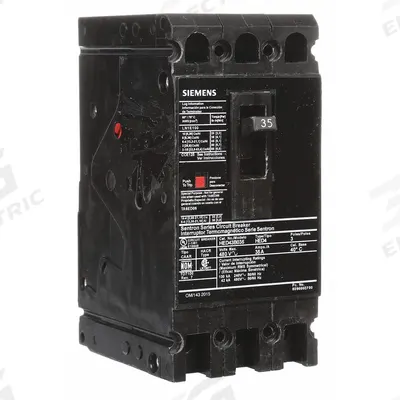

Siemens Molded Case Circuit Breaker: 35 A Amps, 42kA at 480V AC, Fixed, Load Side Lug - ED-Frame Siemens Molded Case Circuit Breakers
SiemensED-Frame Siemens Molded Case Circuit Breakers

Siemens Molded Case Circuit Breaker: 35 A Amps, 42kA at 480V AC, Fixed, Load Side Lug

The SIEMENS Molded Case Circuit Breaker is a 35 A ED-Frame unit from the HED4 series, rated for a maximum AIR of 42kA at 480V AC. It features a fixed instantaneous trip, ABC phase connection, and load-side lug…

SKU 3G-OTH-21831

Brand
Siemens
Item
Molded Case Circuit Breaker: 35 A Amps, 42kA at 480V AC, Fixed, Load Side Lug
Category
ED-Frame Siemens Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Siemens
Manufacturer Part Number
HED43B035
Series
HED4
Type
42kA at 480V AC, Fixed, Load Side Lug, ABC, HED4
Max. AIR Rating
42kA at 480V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Load Side Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Siemens Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SIEMENS Molded Case Circuit Breaker is a 35 A ED-Frame unit from the HED4 series, rated for a maximum AIR of 42kA at 480V AC. It features a fixed instantaneous trip, ABC phase connection, and load-side lug terminal connection (MPN HED43B035).

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the SIEMENS HED43B035 molded case circuit breaker used for?

The SIEMENS HED43B035 is a 35 A ED-frame molded case circuit breaker used for overcurrent protection in industrial power distribution panels, motor control centers, and switchboards. It is rated 42kA at 480V AC with ABC phase connection, making it suitable for three-phase systems requiring high fault-current interruption.

What are the specifications of the SIEMENS HED43B035 circuit breaker?

The SIEMENS HED43B035 is a 35 A, ED-frame molded case circuit breaker from the HED4 series. It has a maximum AIR rating of 42kA at 480V AC, fixed instantaneous trip, ABC phase connection, and load-side lug terminals. The manufacturer part number is HED43B035.

Where to buy the SIEMENS HED43B035 circuit breaker worldwide?

3G Electric supplies the SIEMENS HED43B035 molded case circuit breaker to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this ED-frame, 35 A, 42kA at 480V AC unit.

How to select the correct SIEMENS HED4 circuit breaker for my application?

To select the correct SIEMENS HED4 circuit breaker, verify your system voltage (480V AC), required amp rating (35 A for this model), and available fault current (42kA). Confirm phase connection (ABC) and terminal type (load-side lug). Always consult a licensed engineer for coordination studies and compliance with local codes.
