Siemens Molded Case Circuit Breaker: 90 A Amps, 10kA at 240V AC, Fixed, Load Side Lug - ED-Frame Siemens Molded Case Circuit Breakers
SiemensED-Frame Siemens Molded Case Circuit Breakers

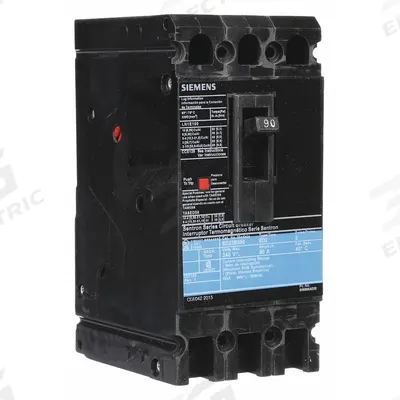

Siemens Molded Case Circuit Breaker: 90 A Amps, 10kA at 240V AC, Fixed, Load Side Lug

The SIEMENS Molded Case Circuit Breaker is an ED-Frame, ED2-series device rated for 90 A amps with a maximum AIR rating of 10kA at 240V AC. It features a fixed instantaneous trip, ABC phase connection, and load-side…

SKU 3G-OTH-22514

Brand
Siemens
Item
Molded Case Circuit Breaker: 90 A Amps, 10kA at 240V AC, Fixed, Load Side Lug
Category
ED-Frame Siemens Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Siemens
Manufacturer Part Number
ED23B090
Series
ED2
Type
10kA at 240V AC, Fixed, Load Side Lug, ABC, ED2
Max. AIR Rating
10kA at 240V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Load Side Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Siemens Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SIEMENS Molded Case Circuit Breaker is an ED-Frame, ED2-series device rated for 90 A amps with a maximum AIR rating of 10kA at 240V AC. It features a fixed instantaneous trip, ABC phase connection, and load-side lug terminal connection (MPN ED23B090).

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the Siemens ED23B090 molded case circuit breaker used for?

The Siemens ED23B090 is an ED-frame molded case circuit breaker used for overcurrent protection in industrial and commercial electrical distribution systems. It is rated for 90 A and 10kA at 240V AC, making it suitable for branch circuit protection in panelboards and switchboards.

What are the specifications of the Siemens ED23B090 circuit breaker?

The Siemens ED23B090 is an ED2-series molded case circuit breaker rated for 90 A amps with a maximum AIR rating of 10kA at 240V AC. It features a fixed instantaneous trip, ABC phase connection, and load-side lug terminal connection. The manufacturer part number is ED23B090.

Where to buy the Siemens ED23B090 circuit breaker worldwide?

You can source the Siemens ED23B090 molded case circuit breaker through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time.

How to select the correct Siemens molded case circuit breaker for your application?

To select the correct Siemens molded case circuit breaker, verify the continuous current rating (90 A for the ED23B090), the maximum AIR rating (10kA at 240V AC), phase connection (ABC), and terminal type (load-side lug). Ensure the frame size (ED2) matches your panelboard or switchboard requirements.
