Siemens Molded Case Circuit Breaker: 80 A Amps, 42kA at 480V AC, Fixed, Load Side Lug - ED-Frame Siemens Molded Case Circuit Breakers
SiemensED-Frame Siemens Molded Case Circuit Breakers

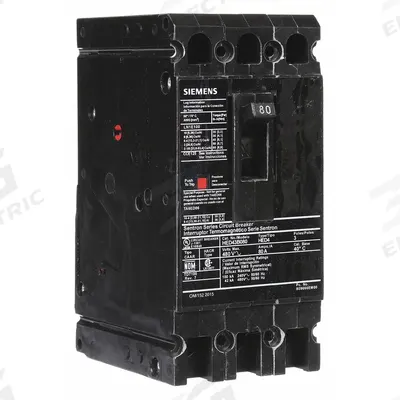

Siemens Molded Case Circuit Breaker: 80 A Amps, 42kA at 480V AC, Fixed, Load Side Lug

The SIEMENS Molded Case Circuit Breaker is an ED-Frame unit rated at 80 A Amps, part of the HED4 series. It features a fixed instantaneous trip, a maximum AIR rating of 42kA at 480V AC, and ABC phase connection. The…

SKU 3G-OTH-22559

Brand
Siemens
Item
Molded Case Circuit Breaker: 80 A Amps, 42kA at 480V AC, Fixed, Load Side Lug
Category
ED-Frame Siemens Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Siemens
Manufacturer Part Number
HED43B080
Series
HED4
Type
42kA at 480V AC, Fixed, Load Side Lug, ABC, HED4
Max. AIR Rating
42kA at 480V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Load Side Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Siemens Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SIEMENS Molded Case Circuit Breaker is an ED-Frame unit rated at 80 A Amps, part of the HED4 series. It features a fixed instantaneous trip, a maximum AIR rating of 42kA at 480V AC, and ABC phase connection. The breaker includes load side lug terminal connections and is identified by manufacturer part number HED43B080.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the SIEMENS HED43B080 molded case circuit breaker used for?

The SIEMENS HED43B080 is an ED-Frame molded case circuit breaker rated at 80 A amps with a 42kA interrupting rating at 480V AC. It is used for overcurrent protection in industrial power distribution panels, motor control centers, and branch circuits requiring ABC phase connection and fixed instantaneous trip settings.

What are the specifications of the SIEMENS HED43B080?

The SIEMENS HED43B080 is an 80 A amp ED-Frame MCCB from the HED4 series. It has a maximum AIR rating of 42kA at 480V AC, ABC phase connection, fixed instantaneous trip, and load side lug terminal connections. The manufacturer part number is HED43B080.

Where to buy the SIEMENS HED43B080 worldwide?

3G Electric supplies the SIEMENS HED43B080 molded case circuit breaker worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time on this ED-Frame 80 A breaker.

How to select the correct SIEMENS HED4 series breaker for my application?

To select the correct SIEMENS HED4 series breaker, verify your system voltage (480V AC max), required interrupting capacity (up to 42kA), phase connection (ABC), and terminal type (load side lug). The HED43B080 is an 80 A fixed instantaneous trip model. Consult a licensed engineer for coordination studies.
