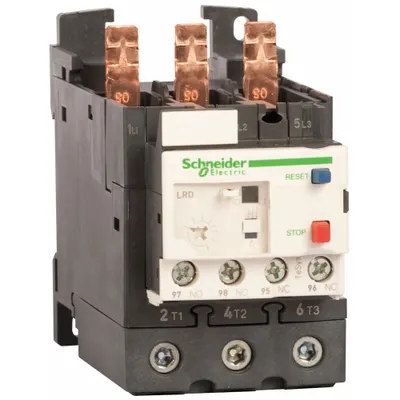

SCHNEIDER LRD350L IEC Thermal Overload Relay
The SCHNEIDER Overload Relay: Thermal Protection (MPN LRD350L) is an IEC thermal overload relay with 3 poles and a 37 A – 50 A range. It features 1NO/1NC auxiliary contacts, a maximum voltage rating of 690V AC, and…
SKU 3G-OTH-42133
Local availability & support — the Philippines
- Delivery
- 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
- Payment
- Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
- Ships to
- Manila, Quezon City, Cebu, Davao, Batangas
Need installation or engineering help?
Ask a question
Product Description
The SCHNEIDER Overload Relay: Thermal Protection (MPN LRD350L) is an IEC thermal overload relay with 3 poles and a 37 A – 50 A range. It features 1NO/1NC auxiliary contacts, a maximum voltage rating of 690V AC, and phase loss sensitivity. The relay includes integrated bimetallic elements, requires no thermal units, and uses screw clamp terminals. It is compatible with TeSys Deca contactors (40 to 65 Amp models).
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the SCHNEIDER LRD350L overload relay used for?
The SCHNEIDER LRD350L overload relay provides thermal protection for three-phase motors by monitoring current and preventing overheating. It is used in industrial motor control panels, conveyors, pumps, and compressors. The relay includes phase loss sensitivity and integrates bimetallic elements for accurate trip response.
What are the specifications of the SCHNEIDER LRD350L overload relay?
The SCHNEIDER LRD350L is a 3-pole IEC thermal overload relay with a current range of 37 A to 50 A. It has 1NO/1NC auxiliary contacts, a maximum voltage rating of 690V AC, and screw clamp terminals. It includes integrated bimetallic elements, requires no thermal units, and is compatible with TeSys Deca contactors (40 to 65 Amp models).
Where to buy the SCHNEIDER LRD350L overload relay worldwide?
You can source the SCHNEIDER LRD350L overload relay worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we supply genuine SCHNEIDER components for motor protection applications.
How to select the correct SCHNEIDER overload relay for a motor?
To select the correct SCHNEIDER overload relay, match the relay's current range to the motor's full-load amperage. The LRD350L covers 37 A to 50 A and is compatible with TeSys Deca contactors rated 40 to 65 Amps. Ensure the relay has phase loss sensitivity if the motor requires it. Always verify voltage rating (690V AC max) and auxiliary contact configuration (1NO/1NC).
