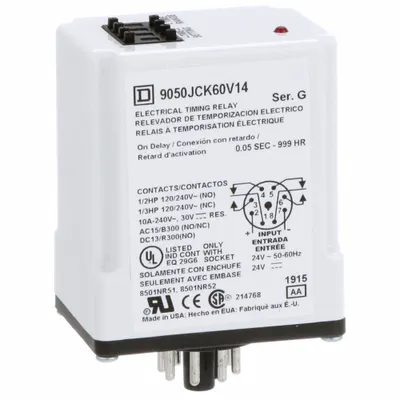

SCHNEIDER Single Function Time Delay Relay: Socket Mounted, 24V AC, 10 A, 8 Pins/Terminals
The SCHNEIDER Single Function Time Delay Relay is a socket-mounted relay with an On Delay function, operating at 24V AC and featuring 8 pins/terminals. It has a contact rating of 10 A @ 120/240V AC, as specified by…
SKU 3G-OTH-40228
Local availability & support — the Philippines
- Delivery
- 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
- Payment
- Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
- Ships to
- Manila, Quezon City, Cebu, Davao, Batangas
Need installation or engineering help?
Ask a question
Product Description
The SCHNEIDER Single Function Time Delay Relay is a socket-mounted relay with an On Delay function, operating at 24V AC and featuring 8 pins/terminals. It has a contact rating of 10 A @ 120/240V AC, as specified by the manufacturer part number 9050JCK60V14.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the SCHNEIDER 9050JCK60V14 time delay relay used for?
The SCHNEIDER 9050JCK60V14 is a single-function time delay relay with an On Delay function. It is used in industrial control panels to introduce a preset time delay before energizing a load, commonly applied in motor starting sequences, conveyor systems, and HVAC equipment to prevent simultaneous startup.
What are the specifications of the SCHNEIDER 9050JCK60V14 relay?
The SCHNEIDER 9050JCK60V14 is a socket-mounted time delay relay with 8 pins/terminals. It operates on 24V AC control voltage and has a contact rating of 10 A at 120/240V AC. The relay provides an On Delay function, meaning the output contacts close after a set time following power application.
Where to buy the SCHNEIDER 9050JCK60V14 time delay relay worldwide?
The SCHNEIDER 9050JCK60V14 time delay relay is available to order through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact 3G Electric for pricing and lead time on this SCHNEIDER relay.
How to install a SCHNEIDER socket-mounted time delay relay?
To install the SCHNEIDER 9050JCK60V14, first ensure the control voltage is 24V AC and the load does not exceed 10 A at 120/240V AC. Mount the relay into a compatible 8-pin socket, wire according to the pin diagram on the relay label, and set the desired time delay using the adjustment knob. Always de-energize the circuit before installation.
Used in
Common applications for SCHNEIDERSCHNEIDER Products
3G Electric supplies SCHNEIDER socket-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
