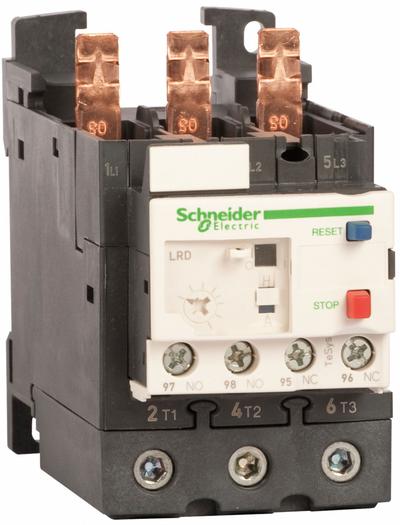

SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC - IEC Thermal Overload Relays
SCHNEIDERIEC Thermal Overload Relays

SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC

The SCHNEIDER Overload Relay: Thermal Protection (MPN LR3D350) is a 3-pole IEC thermal overload relay with integrated bimetallic elements, requiring no external thermal units. It features a 1NO/1NC auxiliary contact…

SKU 3G-OTH-42054

Brand
SCHNEIDER
Item
Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC
Category
IEC Thermal Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
LR3D350
Type
1NO/1NC, TeSys Deca (40 to 65 Amp Models)
Poles
3
Compatible Contactors
TeSys Deca (40 to 65 Amp Models)
Auxiliary Contact Form
1NO/1NC
Maximum Voltage Rating
690V AC
Phase Loss Sensitivity
No
Thermal Units Required
None (Relay Includes Integrated Bimetallic Elements)
Terminal Connection Type
Screw Clamp Terminals
Compatible Contactor Series
TeSys Deca
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Overload Relay: Thermal Protection (MPN LR3D350) is a 3-pole IEC thermal overload relay with integrated bimetallic elements, requiring no external thermal units. It features a 1NO/1NC auxiliary contact form, screw clamp terminals, and a maximum voltage rating of 690V AC. This relay is compatible with TeSys Deca contactors (40 to 65 Amp models) and does not include phase loss sensitivity.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER iec thermal overload relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
