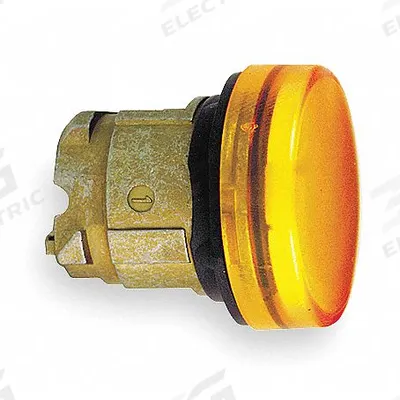

SCHNEIDER Pilot Light Head: 22 mm Panel Mounting Hole Dia, Orange, Smooth - Pilot-Light Heads
SCHNEIDERPilot-Light Heads

SCHNEIDER Pilot Light Head: 22 mm Panel Mounting Hole Dia, Orange, Smooth

The SCHNEIDER ELECTRIC Pilot Light Head is a pilot-light head from the XB4 series, featuring a 22 mm panel mounting hole diameter and an orange, smooth finish. It is compatible with BA9 lamp modules and carries the…

SKU 3G-OTH-30861

Brand
SCHNEIDER
Item
Pilot Light Head: 22 mm Panel Mounting Hole Dia, Orange, Smooth
Category
Pilot-Light Heads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
ZB4BV05
Type
Orange, Smooth, XB4 Series
Compatible with Series
XB4
Compatible Lamp Module Type
BA9 Lamp Module
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER ELECTRIC Pilot Light Head is a pilot-light head from the XB4 series, featuring a 22 mm panel mounting hole diameter and an orange, smooth finish. It is compatible with BA9 lamp modules and carries the manufacturer part number ZB4BV05.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER pilot-light heads. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
