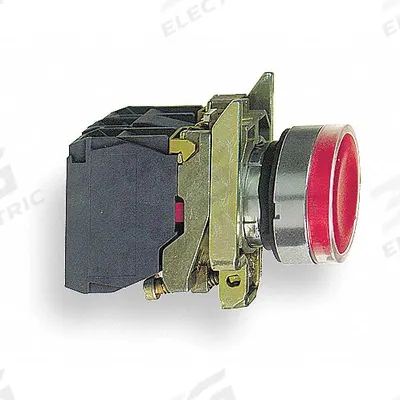

SCHNEIDER Illuminated Push Button: Illuminated, Flush Profile, Metallic, 22 mm - Illuminated Flush-Mount Push Buttons
SCHNEIDERIlluminated Flush-Mount Push Buttons

SCHNEIDER Illuminated Push Button: Illuminated, Flush Profile, Metallic, 22 mm

The SCHNEIDER Illuminated Push Button is an illuminated flush-mount push button from the XB4 series. This momentary-action device features a metallic push button material and is available as SKU 6HL16 with…

SKU 3G-OTH-32530

Brand
SCHNEIDER
Item
Illuminated Push Button: Illuminated, Flush Profile, Metallic, 22 mm
Category
Illuminated Flush-Mount Push Buttons
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
XB4BW34G5
Series
XB4
Type
Flush Profile, Metallic, 22 mm, 1NO/1NC
Action
Momentary
Push Button Material Type
Metallic
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Illuminated Push Button is an illuminated flush-mount push button from the XB4 series. This momentary-action device features a metallic push button material and is available as SKU 6HL16 with manufacturer part number XB4BW34G5.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the SCHNEIDER Illuminated Push Button XB4BW34G5 used for?

The SCHNEIDER Illuminated Push Button XB4BW34G5 is used as a momentary control switch in industrial control panels, machinery, and automation systems. Its flush metallic profile and 22 mm mounting hole make it suitable for applications requiring a durable, illuminated operator interface.

What are the specifications of the SCHNEIDER XB4BW34G5 push button?

The SCHNEIDER XB4BW34G5 is a momentary illuminated push button from the XB4 series. It features a flush metallic profile, 22 mm mounting diameter, and 1NO/1NC contact configuration. The push button material is metallic, and the action is momentary.

Where to buy SCHNEIDER XB4BW34G5 push button worldwide?

You can source the SCHNEIDER XB4BW34G5 illuminated push button worldwide through 3G Electric. As a global industrial equipment distributor, 3G Electric handles full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to install the SCHNEIDER XB4BW34G5 illuminated push button?

To install the SCHNEIDER XB4BW34G5, mount it into a 22 mm panel cutout, secure with the provided locking ring, and wire the 1NO/1NC contacts according to your control circuit. Ensure power is off during installation. Refer to the XB4 series manual for detailed wiring diagrams.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.
