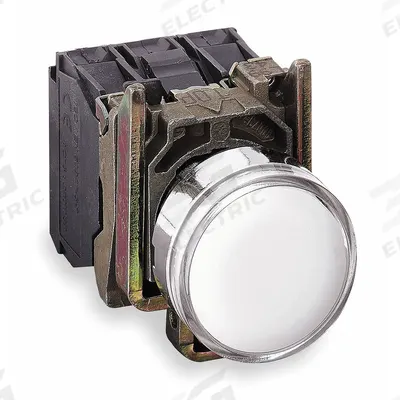

SCHNEIDER Illuminated Push Button: Illuminated, Flush Profile, Metallic, 22 mm - Illuminated Flush-Mount Push Buttons
SCHNEIDERIlluminated Flush-Mount Push Buttons

SCHNEIDER Illuminated Push Button: Illuminated, Flush Profile, Metallic, 22 mm

The SCHNEIDER Illuminated Push Button is an illuminated flush-mount push button from the XB4 series, featuring a metallic construction and a momentary action. This 22 mm component is configured with 1NO/1NC contacts…

SKU 3G-OTH-32547

Brand
SCHNEIDER
Item
Illuminated Push Button: Illuminated, Flush Profile, Metallic, 22 mm
Category
Illuminated Flush-Mount Push Buttons
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
XB4BW31B5
Series
XB4
Type
Flush Profile, Metallic, 22 mm, 1NO/1NC
Action
Momentary
Push Button Material Type
Metallic
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Illuminated Push Button is an illuminated flush-mount push button from the XB4 series, featuring a metallic construction and a momentary action. This 22 mm component is configured with 1NO/1NC contacts (MPN XB4BW31B5).

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the SCHNEIDER Illuminated Push Button XB4BW31B5 used for?

The SCHNEIDER Illuminated Push Button XB4BW31B5 is used as a momentary control switch in industrial control panels, machinery, and automation systems. Its flush metallic profile and 22 mm mounting make it suitable for applications requiring a durable, illuminated operator for start/stop or signaling functions.

What are the specifications of the SCHNEIDER XB4BW31B5 push button?

The SCHNEIDER XB4BW31B5 is a momentary illuminated push button from the XB4 series. It features a metallic flush profile, 22 mm mounting diameter, and 1NO/1NC contact configuration. The manufacturer part number is XB4BW31B5, and it is designed for industrial control environments.

Where to buy SCHNEIDER XB4BW31B5 push button worldwide?

You can source the SCHNEIDER XB4BW31B5 illuminated push button worldwide through 3G Electric. As a global industrial equipment distributor since 1990, 3G Electric handles full logistics, customs clearance, and delivery to your location. Contact 3G Electric for availability and lead time.

How to install the SCHNEIDER XB4BW31B5 illuminated push button?

To install the SCHNEIDER XB4BW31B5, mount it in a 22 mm panel cutout and secure it with the provided locking ring. Wire the 1NO/1NC contacts according to your control circuit, ensuring proper voltage for the illumination. Follow standard industrial safety practices and consult the manufacturer's documentation for torque and wiring details.
