SCHNEIDER Contact Block: 22 mm Panel Mounting Size, 1NC, Momentary - Contact Blocks
SCHNEIDERContact Blocks

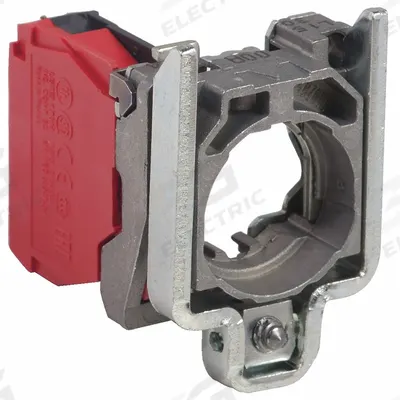

SCHNEIDER Contact Block: 22 mm Panel Mounting Size, 1NC, Momentary

The SCHNEIDER ZB4BZ1026 is a momentary contact block from the ZB4 series, featuring a 22 mm panel mounting size and one normally closed (1NC) contact. It uses screw clamp terminals for secure wiring connections. This…

SKU 3G-OTH-33611

Brand
SCHNEIDER
Item
Contact Block: 22 mm Panel Mounting Size, 1NC, Momentary
Category
Contact Blocks
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
ZB4BZ1026
Switch Action
Momentary
Compatible with Series
ZB4
Terminal Connection Type
Screw Clamp Terminals
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER ZB4BZ1026 is a momentary contact block from the ZB4 series, featuring a 22 mm panel mounting size and one normally closed (1NC) contact. It uses screw clamp terminals for secure wiring connections. This component is designed for integration into SCHNEIDER's ZB4 pushbutton and selector switch systems.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the SCHNEIDER ZB4BZ1026 contact block used for?

The SCHNEIDER ZB4BZ1026 is a momentary contact block used in industrial control panels for pushbutton and selector switch applications. It provides one normally closed (NC) contact and is designed for 22 mm panel mounting, integrating with SCHNEIDER's ZB4 series for machine control and automation systems.

What are the specifications of the SCHNEIDER ZB4BZ1026?

The SCHNEIDER ZB4BZ1026 is a momentary contact block with a 22 mm panel mounting size and one normally closed (1NC) contact. It features screw clamp terminals for secure wiring and is compatible with the ZB4 series. The switch action is momentary, and it uses standard screw-type connections.

Where to buy the SCHNEIDER ZB4BZ1026 worldwide?

You can source the SCHNEIDER ZB4BZ1026 contact block through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead times; we supply genuine SCHNEIDER components for your control panel needs.

How to install the SCHNEIDER ZB4BZ1026 contact block?

To install the SCHNEIDER ZB4BZ1026, mount it on a 22 mm panel opening and secure it with the appropriate locking ring. Connect wires to the screw clamp terminals using a screwdriver, ensuring tight connections. Follow standard electrical safety practices and refer to the ZB4 series manual for wiring diagrams and torque specifications.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.
