SCHNEIDER Pendant Control Station: (2) Push Buttons, 2NO, Up/Down - Push-Button Pendants
SCHNEIDERPush-Button Pendants

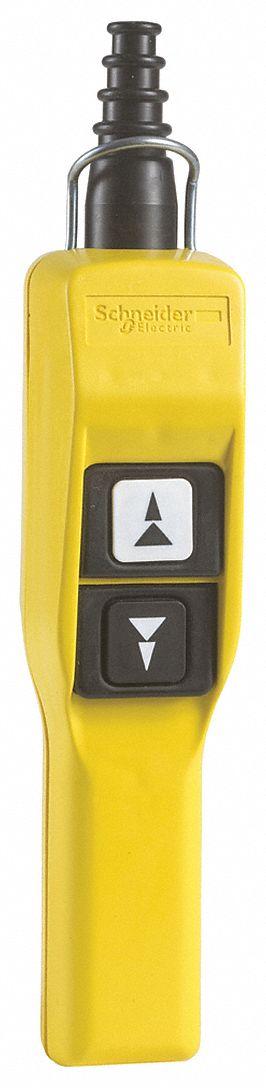

SCHNEIDER Pendant Control Station: (2) Push Buttons, 2NO, Up/Down

The SCHNEIDER ELECTRIC XACA217 is a plastic-enclosed push-button pendant control station from the XACA series, featuring two momentary push buttons with Up/Down legend. It has a dead-end hub style, includes strain…

SKU 3G-OTH-28533

Brand
SCHNEIDER
Item
Pendant Control Station:
Category
Push-Button Pendants
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
XACA217
Series
XACA
Type
2NO, Up/Down, NEMA 1/4/4X/5
Action
Momentary/Momentary
Legend
Up/Down
Hub Style
Dead-End
AC Contact Rating
1.2 A @ 600 V
DC Contact Rating
0.27 A @ 250 V
Enclosure Material
Plastic
Includes Strain Relief
Yes
Operator Configuration
(2) Push Buttons
Operator Configuration Type
(2) Push Buttons
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER ELECTRIC XACA217 is a plastic-enclosed push-button pendant control station from the XACA series, featuring two momentary push buttons with Up/Down legend. It has a dead-end hub style, includes strain relief, and is rated for AC contact at 1.2 A @ 600 V and DC contact at 0.27 A @ 250 V.
