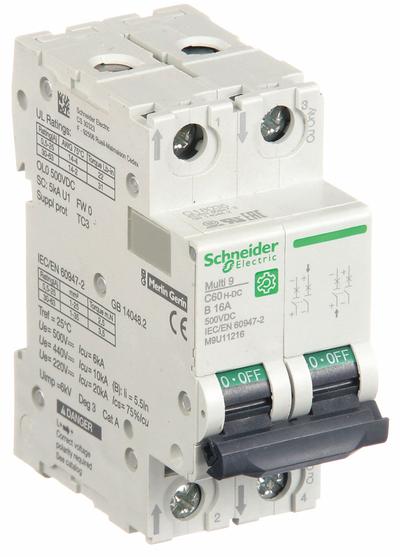

SCHNEIDER Supplementary Protector: 16 A Amps, 500V DC, 5kA at 250V DC, Screw Clamp - DC-Only Rated, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors
SCHNEIDERDC-Only Rated, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors

SCHNEIDER Supplementary Protector: 16 A Amps, 500V DC, 5kA at 250V DC, Screw Clamp

The SCHNEIDER C60H-DC IEC Supplementary Protector (MPN M9U11216) is a 16 A, 2-pole, DC-only rated UL1077 DIN rail-mount supplementary protector with a B curve type. It is rated for 500V DC and has a maximum…

SKU 3G-OTH-22482

Brand
SCHNEIDER
Item
Supplementary Protector: 16 A Amps, 500V DC, 5kA at 250V DC, Screw Clamp
Category
DC-Only Rated, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
M9U11216
Series
C60H-DC
Type
5kA at 250V DC, Screw Clamp, C60H-DC, B
DC
500V
Curve Type
B
Max. AIR Rating
5kA at 250V DC
AC Voltage Rating
Not Rated
DC Voltage Rating
500V DC
Terminal Connection
Screw Clamp
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER C60H-DC IEC Supplementary Protector (MPN M9U11216) is a 16 A, 2-pole, DC-only rated UL1077 DIN rail-mount supplementary protector with a B curve type. It is rated for 500V DC and has a maximum interrupting rating of 5kA at 250V DC, with screw clamp terminals and no AC voltage rating.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER dc-only rated, 2-pole ul1077 din rail-mount supplementary protectors. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
