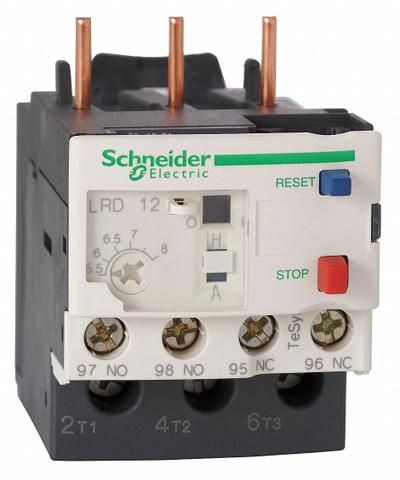

SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity - IEC Thermal Overload Relays
SCHNEIDERIEC Thermal Overload Relays

SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity

The SCHNEIDER LRD14L is an IEC thermal overload relay with integrated bimetallic elements, designed for use with TeSys Deca contactors (9 to 38 Amp models). It features a 1NO/1NC auxiliary contact form, phase loss…

SKU 3G-OTH-41124

Brand
SCHNEIDER
Item
Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity
Category
IEC Thermal Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
LRD14L
Type
1NO/1NC, Phase Loss Sensitivity, 7 A – 10 A
Poles
3
Compatible Contactors
TeSys Deca (9 to 38 Amp Models)
Auxiliary Contact Form
1NO/1NC
Maximum Voltage Rating
690V AC
Phase Loss Sensitivity
Yes
Thermal Units Required
None (Relay Includes Integrated Bimetallic Elements)
Terminal Connection Type
Screw Clamp Terminals
Compatible Contactor Series
TeSys Deca
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER LRD14L is an IEC thermal overload relay with integrated bimetallic elements, designed for use with TeSys Deca contactors (9 to 38 Amp models). It features a 1NO/1NC auxiliary contact form, phase loss sensitivity, and a maximum voltage rating of 690V AC. The relay includes screw clamp terminals and requires no external thermal units.
