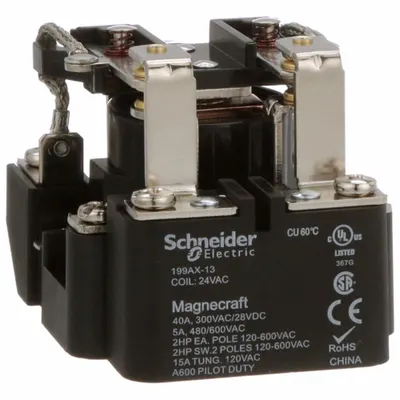

SCHNEIDER Open Power Relay: Surface Mounted, 40 A Current Rating, 24V AC, DPDT
The SCHNEIDER Open Power Relay, part of the 199 Power Series, is a surface-mounted relay with an octal base and screw terminal electrical connection. It features a DPDT contact configuration, rated for 40 A at 24V…
SKU 3G-OTH-37670
Also listed as: 199AX13 · 199AX 13
Local availability & support — the Philippines
- Delivery
- 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
- Payment
- Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
- Ships to
- Manila, Quezon City, Cebu, Davao, Batangas
Need installation or engineering help?
Ask a question
Product Description
The SCHNEIDER Open Power Relay, part of the 199 Power Series, is a surface-mounted relay with an octal base and screw terminal electrical connection. It features a DPDT contact configuration, rated for 40 A at 24V AC, with an operating current of 5 A at 480V AC for resistive loads. This relay has 8 pins/terminals and is identified by manufacturer part number 199AX-13.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the SCHNEIDER 199AX-13 open power relay used for?
The SCHNEIDER 199AX-13 open power relay is used for switching resistive loads in industrial control panels, HVAC systems, and automation equipment. Its DPDT configuration and 40 A rating at 24V AC make it suitable for motor starters, lighting controls, and general-purpose switching where reliable surface-mounted octal-base relays are required.
What are the specifications of the SCHNEIDER 199AX-13 relay?
The SCHNEIDER 199AX-13 is a surface-mounted open power relay from the 199 Power Series. It has an octal base, DPDT contacts, 8 screw terminals, and a current rating of 40 A at 24V AC. Its operating current is 5 A at 480V AC for resistive loads. The manufacturer part number is 199AX-13.
Where to buy the SCHNEIDER 199AX-13 relay worldwide?
You can source the SCHNEIDER 199AX-13 relay worldwide through 3G Electric. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we supply genuine SCHNEIDER components to industrial buyers everywhere.
How to install a surface-mounted octal relay like the SCHNEIDER 199AX-13?
To install the SCHNEIDER 199AX-13, mount the relay on a flat surface using the base holes, then connect wires to the screw terminals per the DPDT wiring diagram. Ensure the coil voltage matches your 24V AC supply and that the load does not exceed 40 A. Always de-energize the circuit before installation and follow standard electrical safety practices.
Used in
Common applications for SCHNEIDERSCHNEIDER Products
3G Electric supplies SCHNEIDER surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
