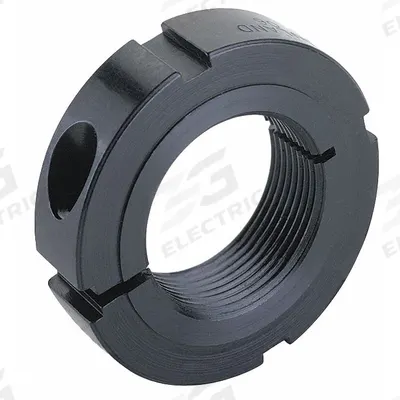

RULAND MANUFACTURING Shaft Collar: 1-Piece Clamp-On, Inch, Type N, Clamping Socket Cap Screw
The RULAND MANUFACTURING Shaft Collar is a 1-Piece Clamp-On bearing locknut, Type N09, with a 1.767"-18 thread and an M5x0.80 clamping socket cap screw. This inch-series component is made from 1215 steel and is…
SKU 3G-OTH-153294
Need installation or engineering help?
Ask a question
Product Description
The RULAND MANUFACTURING Shaft Collar is a 1-Piece Clamp-On bearing locknut, Type N09, with a 1.767"-18 thread and an M5x0.80 clamping socket cap screw. This inch-series component is made from 1215 steel and is identified by manufacturer part number TCN-09-F.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is a RULAND MANUFACTURING TCN-09-F shaft collar used for?
The RULAND MANUFACTURING TCN-09-F is a 1-piece clamp-on bearing locknut used to secure bearings, sprockets, or pulleys on a shaft. It provides precise axial positioning and prevents component migration in industrial power transmission, conveyor, and machinery applications.
What are the specifications of the RULAND MANUFACTURING TCN-09-F shaft collar?
The RULAND MANUFACTURING TCN-09-F is an inch-series Type N09 bearing locknut with a 1.767\"-18 thread and an M5x0.80 clamping socket cap screw. It is made from 1215 steel and is a 1-piece clamp-on design for secure shaft mounting.
Where to buy a RULAND MANUFACTURING TCN-09-F shaft collar worldwide?
3G Electric supplies the RULAND MANUFACTURING TCN-09-F shaft collar worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your facility. Contact us for availability and lead time on this inch-series bearing locknut.
How to install a RULAND MANUFACTURING TCN-09-F clamp-on shaft collar?
To install the RULAND MANUFACTURING TCN-09-F, slide the collar onto the shaft at the desired position. Tighten the M5x0.80 clamping socket cap screw evenly using a hex key until the collar is securely clamped. Avoid over-tightening to prevent shaft damage. Always follow manufacturer torque recommendations.
