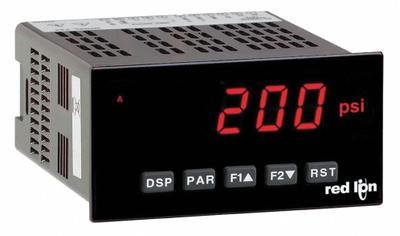

RED LION Dual Process Meter: 99,999 Display Span - Min, -19,999 Display Span - Max - DC Voltage Digital Panel Meters
RED LIONDC Voltage Digital Panel Meters

RED LION Dual Process Meter: 99,999 Display Span - Min, -19,999 Display Span - Max

The RED LION PAXDP010 is a DC Voltage Digital Panel Meter from the PAXDP series, featuring a dual process meter with a 99,999 display span (min -19,999). It offers 0.01% accuracy, a red LED display, RS-232 interface…

SKU 3G-OTH-28780

Brand
RED LION
Item
Dual Process Meter: 99,999 Display Span - Min, -19,999 Display Span - Max
Category
DC Voltage Digital Panel Meters
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

RED LION
Manufacturer Part Number
PAXDP010
Series
PAXDP
Type
- Min, -19,999 Display Span - Max
AC
24 V
Accuracy
0.01%
Includes
Panel Gasket
Interface
RS-232
Input Type
DC Voltage
Product Type
Dual Process Meter
NEMA Enclosure Rating
4X
Terminal Connection Type
Compression
Digital Display Screen Type
LED
Digital Display Screen Color
Red
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

RED LION Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The RED LION PAXDP010 is a DC Voltage Digital Panel Meter from the PAXDP series, featuring a dual process meter with a 99,999 display span (min -19,999). It offers 0.01% accuracy, a red LED display, RS-232 interface, compression terminal connections, and a NEMA 4X enclosure rating, and includes a panel gasket.
