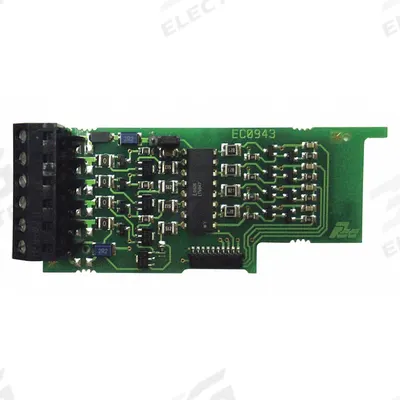

RED LION Quad Sourcing Open Collector Output Card: Cards, Collector Output Card
The RED LION PAXCDS is a Quad Sourcing Open Collector Output Card, a panel meter accessory designed for use with the PAX series. This collector output card features a screw terminal connection and provides a 100 mA…
SKU 3G-OTH-29436
Need installation or engineering help?
Ask a question
Product Description
The RED LION PAXCDS is a Quad Sourcing Open Collector Output Card, a panel meter accessory designed for use with the PAX series. This collector output card features a screw terminal connection and provides a 100 mA sourcing open collector output. It is compatible with RED LION PAX model meters.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the RED LION PAXCDS Quad Sourcing Open Collector Output Card used for?
The RED LION PAXCDS40 is a panel meter accessory that provides four sourcing open collector outputs, each rated at 100 mA. It is used to drive external devices such as relays, counters, or PLC inputs from a compatible PAX series panel meter via screw terminal connections.
What are the specifications of the RED LION PAXCDS40 output card?
The RED LION PAXCDS40 is a Quad Sourcing Open Collector Output Card with a 100 mA output type. It features screw terminal connections and is designed as a panel meter accessory for the PAX series. The card is a sourcing open collector version, part number PAXCDS40.
Where to buy the RED LION PAXCDS40 output card worldwide?
3G Electric supplies the RED LION PAXCDS40 Quad Sourcing Open Collector Output Card to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.
How to install the RED LION PAXCDS40 output card in a PAX meter?
To install the RED LION PAXCDS40, power down the PAX meter, insert the card into the designated expansion slot, and secure it. Connect field wiring to the screw terminals per the PAX manual. Ensure the sourcing output is correctly wired to the load, respecting the 100 mA maximum per channel.
