RAY Pressure Gauge Snubber: Brass, Piston, Brass NPT, 5,000 psi Max. Pressure - Piston-Type Snubbers for Air, Water & Steam
RAYPiston-Type Snubbers for Air, Water & Steam

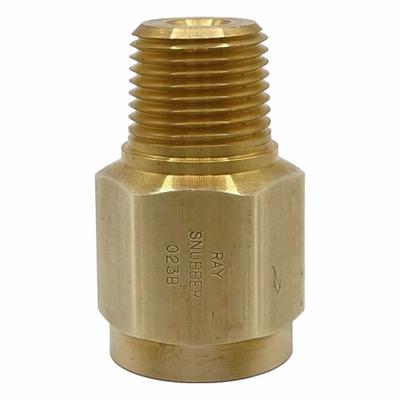

RAY Pressure Gauge Snubber: Brass, Piston, Brass NPT, 5,000 psi Max. Pressure

The RAY Pressure Gauge Snubber is a piston-type snubber made of brass with NPT connections. It is designed for use with water and has a maximum pressure rating of 5,000 psi. The snubber includes three pistons and is…

SKU 3G-OTH-174707

Brand
RAY
Item
Pressure Gauge Snubber: Brass, Piston, Brass NPT, 5,000 psi Max. Pressure
Category
Piston-Type Snubbers for Air, Water & Steam
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

RAY
Manufacturer Part Number
023B
Type
Piston, Brass NPT
Material
Brass
Pistons
3
Snubber Type
Piston
Max. Pressure
5,000 psi
Connection Type
NPT
Compatible Liquids and Gases
Water
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

RAY Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The RAY Pressure Gauge Snubber is a piston-type snubber made of brass with NPT connections. It is designed for use with water and has a maximum pressure rating of 5,000 psi. The snubber includes three pistons and is identified by manufacturer part number 023B.

Used in

Common applications for RAY
Hydraulic systems — RAY piston-type snubbers (e.g., MPN 050B) dampen pressure spikes in oil-based hydraulic circuits.
Steam lines — RAY stainless steel filter-type snubbers (e.g., MPN 722SE) protect gauges from steam pressure surges.
Pneumatic controls — RAY brass piston-type snubbers (e.g., MPN 047B) smooth air pressure fluctuations in pneumatic systems.
Water treatment plants — RAY brass filter-type snubbers (e.g., MPN 747BG) reduce water hammer effects on pressure gauges.
Oil and gas pipelines — RAY stainless steel piston-type snubbers (e.g., MPN 078S) handle gas pressure pulsations in pipeline monitoring.

RAY Products

3G Electric supplies RAY piston-type snubbers for air, water & steam. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
