RACO Liquid-Tight Conduit Fitting: Steel/Iron, 1 1/2 in Trade Size, Insulated - Hazardous Location Liquid-Tight Conduit Fittings
RACOHazardous Location Liquid-Tight Conduit Fittings

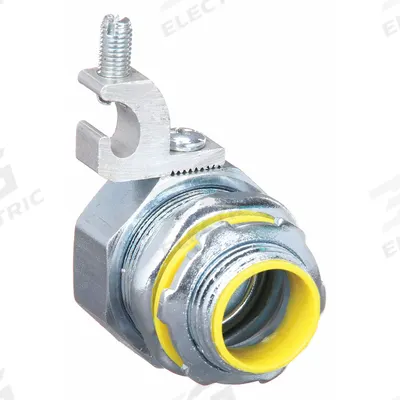

RACO Liquid-Tight Conduit Fitting: Steel/Iron, 1 1/2 in Trade Size, Insulated

The RACO 3516-3 is a hazardous location liquid-tight conduit fitting made of iron with a gray finish. It has a 1-1/2 in trade size, a straight connection orientation, and a 1-1/2 in MNPT box connection. This…

SKU 3G-OTH-05469

Brand
RACO
Item
Liquid-Tight Conduit Fitting: Steel/Iron, 1 1/2 in Trade Size, Insulated
Category
Hazardous Location Liquid-Tight Conduit Fittings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

RACO
Manufacturer Part Number
3516-3
Type
Insulated, Indoor/Outdoor
Material
Iron
Color
Gray
Elbow
90°
UNSPSC
39121420
Insulated
Yes
Standards
CSA C22.2 No. 18 Certified
Trade Size
1-1/2 in
For Use With
Flexible Liquid Tight Metallic Conduit
Overall Width
2-13/32 in
Box Connection
1-1/2 in MNPT
Overall Length
2-3/16 in
Country of Origin
China (subject to change)
Indoor/Outdoor Usage
Indoor/Outdoor
Connection Orientation
Straight
Hazardous Location Rating
Class I, Division 2 Class II, Division 1 and 2 Class III, Division 1 and 2
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

RACO Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The RACO 3516-3 is a hazardous location liquid-tight conduit fitting made of iron with a gray finish. It has a 1-1/2 in trade size, a straight connection orientation, and a 1-1/2 in MNPT box connection. This insulated fitting is CSA C22.2 No. 18 Certified and rated for Class I, Division 2; Class II, Division 1 and 2; and Class III, Division 1 and 2 locations, suitable for indoor/outdoor use with flexible liquid-tight metallic conduit.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Used in

Common applications for RACO
Industrial power distribution — RACO grounding bushings (MPN 1294) for bonding conduit in panelboards and switchgear.
Commercial conduit transitions — RACO reducing bushings (MPN 1155) for downsizing RMC or IMC runs in electrical rooms.
Life safety alarm circuits — RACO steel electrical boxes (MPN 911-9) for housing fire alarm and emergency lighting connections.
Outdoor service entrances — RACO rigid/IMC hubs (MPN 1716) for weatherproof conduit terminations at meter sockets.
Conduit support in cable trays — RACO surface mount clamps (MPN 1304) for securing IMC or RMC to structural steel.
Multi-gang junction boxes — RACO 4-inch square boxes (MPN 189H) with covers for splicing circuits in commercial ceilings.

RACO Products

3G Electric supplies RACO hazardous location liquid-tight conduit fittings. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
