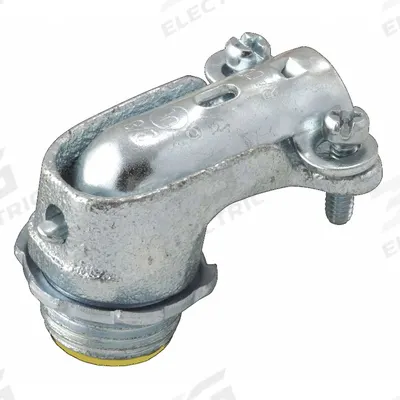

RACO Connector - Clamp Style, 90 Degrees: Iron, 1 in Trade Size, 1 in MNPT - 90° Connectors - Clamp Style
RACO90° Connectors - Clamp Style

RACO Connector - Clamp Style, 90 Degrees: Iron, 1 in Trade Size, 1 in MNPT

The RACO 90° Connector - Clamp Style (SKU 206D15, MPN 3204) is an iron, insulated connector with a 1 in trade size and a 1 in MNPT box connection. It features a squeeze clamp cable clamping method and is UL Listed…

SKU 3G-OTH-05584

Brand
RACO
Item
Connector - Clamp Style, 90 Degrees: Iron, 1 in Trade Size, 1 in MNPT
Category
90° Connectors - Clamp Style
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

RACO
Manufacturer Part Number
3204
Material
Iron
Color
Gray
Insulated
Yes
Standards
UL Listed
Thread Size
1"-11-1/2
For Use With
AC
Box Connection
1 in MNPT
Connection Type
Squeeze
Connector Style
90°
Insulated - Broad
Insulated
Cable Clamping Method
Squeeze Clamp
Connection Orientation
90°
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

RACO Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The RACO 90° Connector - Clamp Style (SKU 206D15, MPN 3204) is an iron, insulated connector with a 1 in trade size and a 1 in MNPT box connection. It features a squeeze clamp cable clamping method and is UL Listed for use with AC. This gray connector has a 1"-11-1/2 thread size.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the RACO 90° Connector - Clamp Style used for?

The RACO 90° Connector - Clamp Style (MPN 3204) is used to connect AC cable to electrical boxes in industrial and commercial wiring. Its 90-degree orientation and squeeze clamp design provide secure, insulated cable termination in tight spaces.

What are the specifications of the RACO 3204 connector?

The RACO 3204 is an iron, insulated 90° connector with a 1 in trade size and 1 in MNPT box connection. It uses a squeeze clamp cable clamping method, has a 1"-11-1/2 thread size, is UL Listed, and is gray. It is designed for use with AC cable.

Where to buy the RACO 3204 connector worldwide?

3G Electric supplies the RACO 3204 connector worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us to source this connector for your project.

How to install a RACO squeeze clamp connector?

To install the RACO 3204, insert the AC cable into the connector body, then tighten the squeeze clamp nut to secure the cable. Thread the 1 in MNPT end into the box knockout and tighten. Ensure the connector is fully seated for a UL Listed installation.

Used in

Common applications for RACO
Industrial power distribution — RACO grounding bushings (MPN 1294) for bonding conduit in panelboards and switchgear.
Commercial conduit transitions — RACO reducing bushings (MPN 1155) for downsizing RMC or IMC runs in electrical rooms.
Life safety alarm circuits — RACO steel electrical boxes (MPN 911-9) for housing fire alarm and emergency lighting connections.
Outdoor service entrances — RACO rigid/IMC hubs (MPN 1716) for weatherproof conduit terminations at meter sockets.
Conduit support in cable trays — RACO surface mount clamps (MPN 1304) for securing IMC or RMC to structural steel.
Multi-gang junction boxes — RACO 4-inch square boxes (MPN 189H) with covers for splicing circuits in commercial ceilings.

RACO Products

3G Electric supplies RACO 90° connectors - clamp style. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
