InterpumpPumps & Compressors

Interpump PUMP VHT5813 R

Interpump PUMP VHT5813 R is an industrial positive displacement pump delivering 13 L/min at 170 bar, rated 4.22 kW at 1450 rpm. This compact unit weighs 7 kg and serves high-pressure hydraulic systems requiring…

SKU 3G-ITP-01243

Also listed as: VHT5813000 · VHT5813 000

Brand

Interpump

Item

PUMP VHT5813 R

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

Interpump

Flow Rate

13 L/min

Pressure

170 bar

Power

4.22 kW

Speed

1450 RPM

Weight

7 kg

Dimensions

241.5 mm

Power

5.74 HP

Flow (US)

3.43 GPM

Pressure

17 MPa

Pressure

2465 PSI

Datasheet Content

SS71170




TECHNICAL INFORMATION
Flow (L/min)                        170
Flow (US Gpm)                       44,9
Rotation regime (rpm)               900
Pressure (MPa)                      10
Pressure (bar)                      100
Pressure (psi)                      1450
Power (hp)                          44,2
Power (kW)                          32,5
Overall dimensions L x l x h (mm)   526x367x252,5
Weight (kg)                         68




SS71170                                             3/21/2026   Page 1 - 6
Copyright INTERPUMP GROUP S.P.A
SS71170

     Documents

Male shaft (key) - GAS




SS71170                           3/21/2026   Page 2 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS




SS71170                               3/21/2026   Page 3 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.      Code          Description                  Qty Notes
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2044   34204401                                   1
KIT2043   34204301                                   1
KIT2042   34204201                                   1
KIT2033   34203301                                   1
65        71050866                                   3
64        90911000                                   3
63        90924000                                   3
63        90922200      UPPER HALF CONROD BUSHING 3
                        +0.5 (BIG END) S.70

63        90922100      UPPER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

62        90924300                                   3
62        90922500      LOWER HALF CONROD BUSHING 3
                        +0.50 (BIG END) S.70

62        90922400      LOWER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

61        71225951      PLUG CAP                     3
60        71225851                                   6
58        71223074      STAFFA DI SOLLEVAMENTO       1
57        99426600      VITE TE M12X25-UNI5739 ZINC. 1


56        71030701                                   3
55        90352800      O-RING D. 29.00x1.50 NBR 70SH 3


54        99199400                                   6
53        94754000      SPRING D.24.7X27             3
52        36715501                                   3
51        36715601                                   3
50        90524000                                   6
49        36207256                                   6
48        36209602                                   6
47        36208651      INNER VALVE GUIDE            6
46        94755000                                   3
45        36204505      VALVE CAGE SS (71 SERIES)    6


44        90388900                                   12
43        90525000                                   6
42        71223766                                   6




SS71170                                                          3/21/2026   Page 4 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description                Qty Notes

41     71223636                                    2
40     99429500         SCREW M12X35 UNI5931 12.31 14
                        DACR.
39     99448200                                    8
38     71127536                                    1
36     71212366                                    2
35     90246000                                    3
34     90389100                                    3
33     71223966                                    3
32     90245000                                    3
31     71224066                                    3
30     90079700                                    3
29     71223856                                    3
28     90367100                                    3
27     71040509                                    3
26     96714000                                    3
25     90167800                                    3
24     97743000                                    3
23     71050715                                    3
22     90060600                                    1
21     71606601                                    3
20     90170000                                    1
19     71150022                                    1
18     91500000                                    1
17     71020035                                    1
16     99313800                                    6
15     98206000                                    4
14     90400000                                    1
13     71160022                                    1
12     98212000                                    1
11     98218100                                    4
10     90384100         O-RING 17,12X2,62 (3068)   6
9      99186800                                    20
8      71150122                                    1
7      90387700         O-RING 39,34X2,62 (3156)   1
6      70211801         OIL SIGHT GLASS            1
5      90075600         CIRCLIP D.45 (ZJ45)        1
4      70220381         SHIM 0.25 MM.              1
4      70220081         SHIM 0.1 MM.               1
3      90391800                                    2
2      91859000                                    2




SS71170                                                        3/21/2026   Page 5 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description   Qty Notes

1      71010022                       1




SS71170                                           3/21/2026   Page 6 - 6
Copyright INTERPUMP GROUP S.P.A

Technical Documents

(1)

Industrial_Pumps__High_Temperature_Versions_Series_58_VHT___VHT5813__INTPETH03IPL2026321154548174

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Interpump Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

Where can I buy the Interpump VHT5813 R pump in the Philippines?

You can buy the Interpump VHT5813 R pump from 3G Electric Philippines. We provide delivery to Manila and Quezon City and handle all logistics and customs documentation.

What is the lead time for shipping the Interpump VHT5813 R pump to the Philippines?

Lead time is available on request. 3G Electric Philippines manages shipping and customs clearance to ensure smooth delivery to your location.

What is the maximum pressure rating of the Interpump VHT5813 R pump?

The Interpump VHT5813 R pump is rated for a maximum pressure of 170 bar (17 MPa or 2465 psi) suitable for high-pressure hydraulic systems.

Used in

Common applications for Interpump

Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service

Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry

Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks

Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines

Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official VHT5813 parts list — 124 parts, 61 available in catalog

Official Parts List

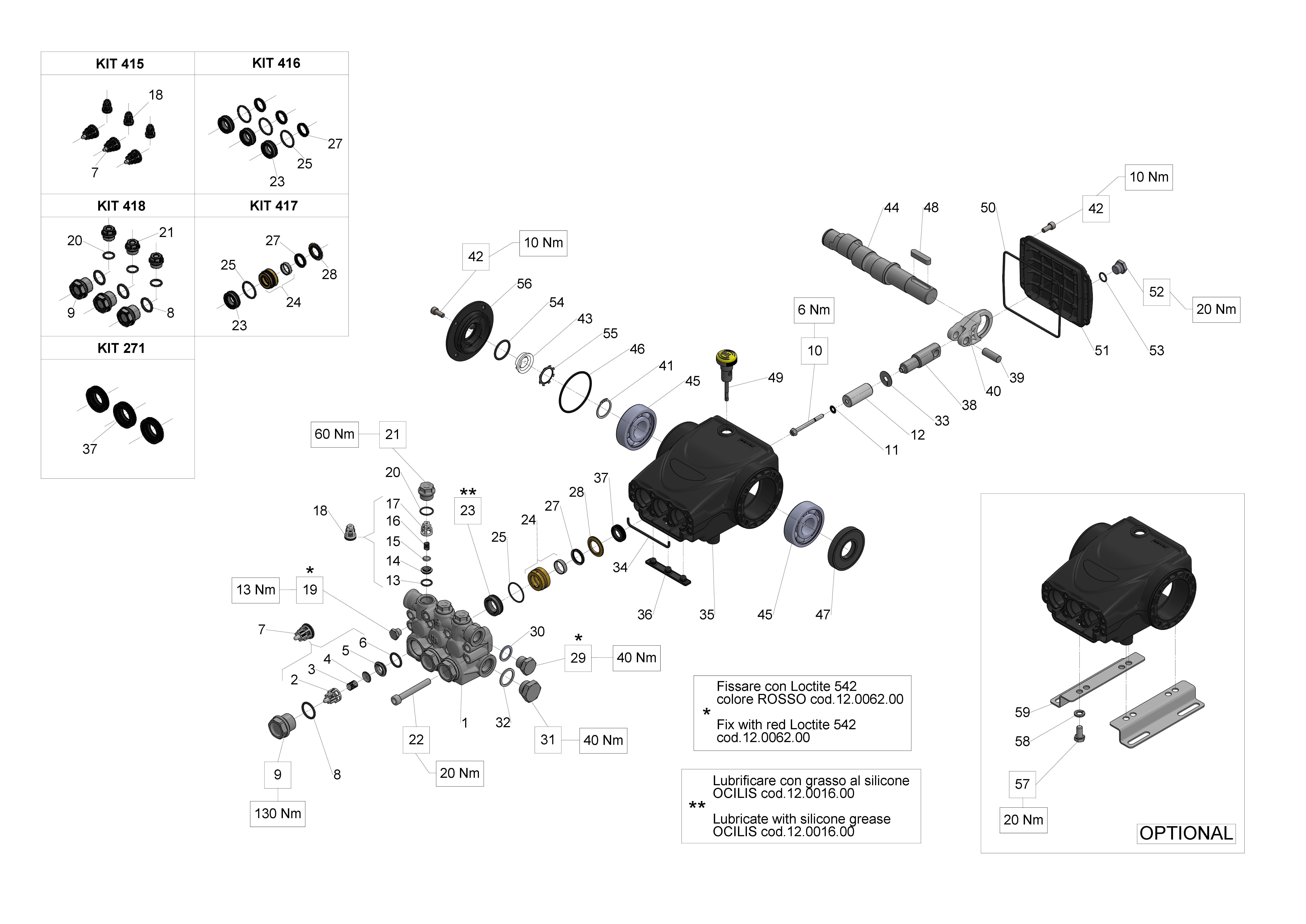

VHT5813 — Male shaft (key) exploded diagram

Repair Kits — Order These for Routine Maintenance

KIT271

KIT 271 OIL SEAL D.15 58/59 SERIES

34027101×1Available

Interpump PUMP VHT5813 R
