Datasheet Content
VHT5811
TECHNICAL INFORMATION
Flow (L/min) 11
Flow (US Gpm) 2,91
Rotation regime (rpm) 1450
Pressure (MPa) 17
Pressure (bar) 170
Pressure (psi) 2465
Power (hp) 4,86
Power (kW) 3,57
Overall dimensions L x l x h (mm) 241,5x215x129,5
Weight (kg) 7
VHT5811 3/21/2026 Page 1 - 8
Copyright INTERPUMP GROUP S.P.A
VHT5811
Documents
Male shaft (key)
Hollow shaft (key) Ø28 - vers. B
VHT5811 3/21/2026 Page 2 - 8
Copyright INTERPUMP GROUP S.P.A

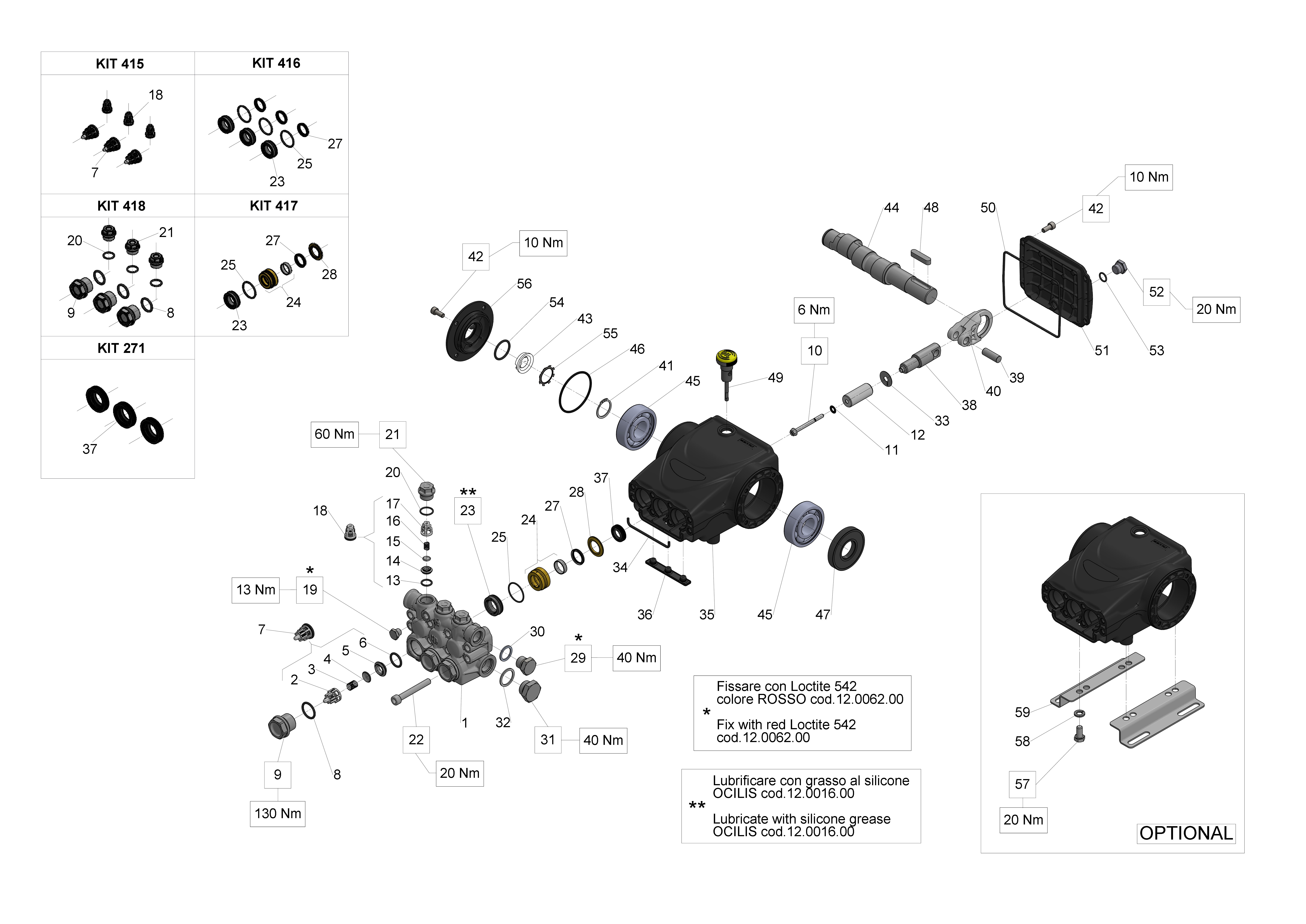

Illustration Male shaft (key)
VHT5811 3/21/2026 Page 3 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key)
Pos. Code Description Qty Notes
KIT418 34041801 KIT 418*GR. TAPPI ASP.E MAND. 1
(58.VHT))
KIT417 34041701 KIT 417*TENUTA COMPLETA 1
D.18 (58.VHT)
KIT416 34041601 KIT 416*ANELLI DI TENUTA D.18 1
(58.VHT)
KIT415 34041501 KIT 415*GR. VALV. ASPIRAZ. E 1
MAND. (58.VHT)
KIT271 34027101 KIT 271 OIL SEAL D.15 1
58/59 SERIES
59 50200074 PUMP FOOT 2
58 96701600 WASHER 8,4 4
57 99303700 SCREW M 8x16-5739 4
56 58150122 COPERCHIO LATERALE 1
55 90067100 CIRCLIP ZJ30 1
54 90385900 O-RING 25,07X2,62 (3100) 1
53 90358500 O-RING 10,82X1,78 (2043) 1
52 98204250 PLUG G1/4"x12 1
51 58160022 REAR CRANKCASE COVER 1
50 90392550 O-RING D.113.97X2.62 1
49 98210500 OIL DIPSTICK G3/8x51 D.7 1
48 91489200 KEY 8(h9)X7X35 UNI 6604/A 1
47 90164100 OIL SEAL D.25X62X10 1
46 90389800 O-RING 56,82X2,62 (3225) 1
45 91833100 BALL BEARING 6305 SKF 2
44 63021235 CRANKSHAFT C.10 1
43 53210851 OIL LEVEL GAUGE 1
42 99183700 SCREW M 6x14 UNI 5931 8
41 90063500 CIRCLIP D. 25 UNI 7435 1
40 58030022 CONNECTING ROD 3
39 97734000 CONNECTING-ROD PIN 3
D.10X29,5
38 58050066 PISTON GUIDE 3
37 90156550 OIL SEAL D.15X24X5/7 3
36 58210451 PROTECTION 1
35 58010022 PUMP CRANKCASE 1
34 58210582 SPONGE GASKET D.3X94 1
33 96699000 WASHER D.7.5X23X0.5 3
32 96751400 WASHER 21,5X27X1,5 1
31 98217900 PLUG G 1/2X10 NICKEL 1
30 96738000 WASHER 17,5X23X1,5 1
29 98209900 PLUG G. 3/8X13 NICKEL 1
VHT5811 3/21/2026 Page 4 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key)
Pos. Code Description Qty Notes
28 58211270 RING FOR PACKING D.18 HT 3
27 90220000 SEAL D. 18X22,5 L.P. 3
25 90360650 OR D. 26.70x1.78 HNBR 70SH 3
2106
24 58606401 GR. SUPP. GUARN + BOCCOLA 3
D.18 OT HT
23 90221000 SEAL D. 18X28X10 H.P. 3
22 99317500 SCREW M 8x60 UNI 5931 8
21 98213750 PLUG M18X1,5X10 D.23 (NICK.) 3
20 90359350 OR D. 15.60x1.78 HNBR 70SH 3
2062
19 98196700 PLUG G 1/8 X 8 NICKEL 1
18 36729801 GRUPPO VALVOLA MANDATA 3
(58.VHT)
17 36211151 VALVE CAGE 3
16 94733300 SPRING D.6.2x10.5 S.S. 3
15 36211276 SPHERICAL VALVE 3
14 36211366 VALVE SEAT 3
13 90367450 OR D. 12.00x2.00 HNBR 70SH 3
12 58040209 PISTON D.18X42 3
11 96690500 WASHER D.5X11.5x0.4 3
INOX+FKM58/59/63HT
10 99169000 SCREW M05X55 SPEC. A2-70 3
9 98222500 VALVE CAP M24X1,5X17 NICKEL 3
8 90384750 O-RING D. 20.29x2.62 HNBR 3
90SH 3081
7 36726201 INLET/OUTLET VALVE (60-63 3
VHT)
6 90384150 O-RING D. 17.13x2.62 HNBR 3
70SH 3068
5 36200366 VALVE SEAT 3
4 36200176 VALVE PLATE 3
3 94737600 SPRING D. 9,4X14,8 3
2 36202551 VALVE CAGE 3
1 58120741 MANIFOLD FOR PISTON D. 18 1
NICKEL PL.
VHT5811 3/21/2026 Page 5 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Hollow shaft (key) Ø28 - vers. B
VHT5811 3/21/2026 Page 6 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Hollow shaft (key) Ø28 - vers. B
Pos. Code Description Qty Notes
KIT418 34041801 KIT 418*GR. TAPPI ASP.E MAND. 1
(58.VHT))
KIT417 34041701 KIT 417*TENUTA COMPLETA 1
D.18 (58.VHT)
KIT416 34041601 KIT 416*ANELLI DI TENUTA D.18 1
(58.VHT)
KIT415 34041501 KIT 415*GR. VALV. ASPIRAZ. E 1
MAND. (58.VHT)
KIT271 34027101 KIT 271 OIL SEAL D.15 1
58/59 SERIES
61 99191200 SCREW M 6x30 UNI 5931 4
60 10049422 FLANGE FOR EL.MOT.B3B14 1
(EUR)
59 96701400 WASHER 8,4X13X0,8 4
58 99306700 SCREW M 8x25 UNI 5739 4
57 90409700 O-RING 55,56X3,53 (159) 1
56 91856800 NEEDLE BEARING DHK 4520 1
55 58150122 COPERCHIO LATERALE 1
54 90067100 CIRCLIP ZJ30 1
53 90385900 O-RING 25,07X2,62 (3100) 1
52 90358500 O-RING 10,82X1,78 (2043) 1
51 98204250 PLUG G1/4"x12 1
50 58160022 REAR CRANKCASE COVER 1
49 90392550 O-RING D.113.97X2.62 1
48 98210500 OIL DIPSTICK G3/8x51 D.7 1
47 90169000 OIL SEAL D. 45X62X8 1
46 90389800 O-RING 56,82X2,62 (3225) 1
45 91833100 BALL BEARING 6305 SKF 1
44 63025265 CRANKSHAFT C10 D.28mm 1
HOLLOW
43 53210851 OIL LEVEL GAUGE 1
42 99183700 SCREW M 6x14 UNI 5931 8
41 90063500 CIRCLIP D. 25 UNI 7435 1
40 58030022 CONNECTING ROD 3
39 97734000 CONNECTING-ROD PIN 3
D.10X29,5
38 58050066 PISTON GUIDE 3
37 90156550 OIL SEAL D.15X24X5/7 3
36 58210451 PROTECTION 1
35 58010022 PUMP CRANKCASE 1
34 58210582 SPONGE GASKET D.3X94 1
33 96699000 WASHER D.7.5X23X0.5 3
32 96751400 WASHER 21,5X27X1,5 1
VHT5811 3/21/2026 Page 7 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Hollow shaft (key) Ø28 - vers. B
Pos. Code Description Qty Notes
31 98217900 PLUG G 1/2X10 NICKEL 1
30 96738000 WASHER 17,5X23X1,5 1
29 98209900 PLUG G. 3/8X13 NICKEL 1
28 58211270 RING FOR PACKING D.18 HT 3
27 90220000 SEAL D. 18X22,5 L.P. 3
25 90360650 OR D. 26.70x1.78 HNBR 70SH 3
2106
24 58606401 GR. SUPP. GUARN + BOCCOLA 3
D.18 OT HT
23 90221000 SEAL D. 18X28X10 H.P. 3
22 99317500 SCREW M 8x60 UNI 5931 8
21 98213750 PLUG M18X1,5X10 D.23 (NICK.) 3
20 90359350 OR D. 15.60x1.78 HNBR 70SH 3
2062
19 98196700 PLUG G 1/8 X 8 NICKEL 1
18 36729801 GRUPPO VALVOLA MANDATA 3
(58.VHT)
17 36211151 VALVE CAGE 3
16 94733300 SPRING D.6.2x10.5 S.S. 3
15 36211276 SPHERICAL VALVE 3
14 36211366 VALVE SEAT 3
13 90367450 OR D. 12.00x2.00 HNBR 70SH 3
12 58040209 PISTON D.18X42 3
11 96690500 WASHER D.5X11.5x0.4 3
INOX+FKM58/59/63HT
10 99169000 SCREW M05X55 SPEC. A2-70 3
9 98222500 VALVE CAP M24X1,5X17 NICKEL 3
8 90384750 O-RING D. 20.29x2.62 HNBR 3
90SH 3081
7 36726201 INLET/OUTLET VALVE (60-63 3
VHT)
6 90384150 O-RING D. 17.13x2.62 HNBR 3
70SH 3068
5 36200366 VALVE SEAT 3
4 36200176 VALVE PLATE 3
3 94737600 SPRING D. 9,4X14,8 3
2 36202551 VALVE CAGE 3
1 58120741 MANIFOLD FOR PISTON D. 18 1
NICKEL PL.
VHT5811 3/21/2026 Page 8 - 8
