Pratissoli PUMP SN7070 R

The Pratissoli PUMP SN7070 R is an industrial positive displacement pump delivering 70 L/min at 130 bar, powered by an 18.4 kW motor operating at 1450 rpm. Designed for high-pressure hydraulic and fluid transfer…

SKU 3G-ITP-00792

Also listed as: SN7070000 · SN7070 000

Brand

Pratissoli

Item

PUMP SN7070 R

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

Pratissoli

Flow Rate

70 L/min

Pressure

130 bar

Power

18.4 kW

Speed

1450 RPM

Weight

43 kg

Dimensions

387 mm

Power

25 HP

Flow (US)

18.5 GPM

Pressure

13 MPa

Pressure

1885 PSI

Datasheet Content

WK12




TECHNICAL INFORMATION
Flow (L/min)                        120
Flow (US Gpm)                       31,7
Rotation regime (rpm)               1000
Pressure (MPa)                      12
Pressure (bar)                      120
Pressure (psi)                      1740
Power (hp)                          37,6
Power (kW)                          27,6
Overall dimensions L x l x h (mm)   526x367x252,5
Weight (kg)                         70




WK12                                                3/21/2026   Page 1 - 6
Copyright INTERPUMP GROUP S.P.A
WK12

     Documents

Male shaft (key) - GAS




WK12                              3/21/2026   Page 2 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS




WK12                                  3/21/2026   Page 3 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.      Code          Description                  Qty Notes
KIT2222   34222201                                   1
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2066   34206601                                   1
KIT2013   34201301                                   1
KIT2012   34201201                                   1
67        99429500      SCREW M12X35 UNI5931 12.31 14
                        DACR.
65        71050866                                   3
64        90911000                                   3
63        90924000                                   3
63        90922200      UPPER HALF CONROD BUSHING 3
                        +0.5 (BIG END) S.70

63        90922100      UPPER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

62        90924300                                   3
62        90922500      LOWER HALF CONROD BUSHING 3
                        +0.50 (BIG END) S.70

62        90922400      LOWER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

61        71225951      PLUG CAP                     3
60        71225851                                   6
58        71223074      STAFFA DI SOLLEVAMENTO       1
57        99426600      VITE TE M12X25-UNI5739 ZINC. 1


56        71030701                                   3
55        90352800      O-RING D. 29.00x1.50 NBR 70SH 3


54        99199400                                   6
53        94754000      SPRING D.24.7X27             3
52        36713601                                   3
51        36713701                                   3
50        90524000                                   6
49        36204156                                   6
48        36208502      SPHERICAL VALVE COMPLETE     6
47        36208651      INNER VALVE GUIDE            6
46        94755000                                   3
45        36204505      VALVE CAGE SS (71 SERIES)    6


44        90388900                                   12
43        90525000                                   6




WK12                                                             3/21/2026   Page 4 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description                  Qty Notes

42     71211170                                      6
40     71227415                                      2
39     99448000                                      8
38     71129215                                      1
37     72100051         HEAD RING D.32               1
36     90278800         PACKING D.32X44              1
35     90278400         RESTOP RING D. 32x44x5,5/3   1


34     90389100                                      3
33     72210470                                      1
32     90278000         PACKING D.32x40x5,5 L.P      1
31     72210570                                      3
30     90079700                                      3
29     71219566                                      3
28     90367100                                      3
27     72040009                                      3
26     96714000                                      3
25     90167800                                      3
24     97743000                                      3
23     71050715                                      3
22     90060600                                      1
21     71606601                                      3
20     90170000                                      1
19     71150022                                      1
18     91500000                                      1
17     71020035                                      1
16     99313800                                      6
15     98206000                                      4
14     90400000                                      1
13     71160022                                      1
12     98212000                                      1
11     98218700                                      1
10     90384100         O-RING 17,12X2,62 (3068)     1
9      99186700         SCREW M 6x18 UNI 5931        20
8      71150122                                      1
7      90387700         O-RING 39,34X2,62 (3156)     1
6      70211801         OIL SIGHT GLASS              1
5      90075600         CIRCLIP D.45 (ZJ45)          1
4      70220381         SHIM 0.25 MM.                1
4      70220081         SHIM 0.1 MM.                 1
3      90391800                                      2




WK12                                                             3/21/2026   Page 5 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description   Qty Notes

2      91859000                       2
1      71010022                       1




WK12                                              3/21/2026   Page 6 - 6
Copyright INTERPUMP GROUP S.P.A

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Pratissoli Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

Where can I buy the Pratissoli SN7070 R pump in the Philippines?

3G Electric Philippines stocks and sources the Pratissoli SN7070 R for delivery to Manila, Quezon City, and nationwide. We handle all Bureau of Customs documentation and logistics. Contact us for lead times and PHP invoicing.

What is the lead time for the Pratissoli SN7070 R?

Lead time varies based on current availability. The SN7070 R is available to order through 3G Electric. Contact our team with your delivery timeline for a specific quote and shipping estimate to your Philippines location.

What applications suit the Pratissoli SN7070 R pump?

The SN7070 R delivers 70 L/min at 130 bar, ideal for high-pressure hydraulic systems, fluid transfer in food processing, and packaging equipment. Its 18.4 kW motor at 1450 rpm provides compact, reliable performance for industrial automation.

Used in

Common applications for Pratissoli

High-pressure industrial cleaning systems — Pratissoli SN7070F and SN71106F pumps (130–200 bar) for sustained pump duty in fixed or mobile wash equipment

Marine and shipboard hydraulic systems — SS7061H and SS71153 pumps rated 150–160 bar for deck machinery and propulsion auxiliaries requiring compact, reliable units

Construction equipment hydraulics — SN7193 and SN71106 models (200–210 bar) for excavator, loader, and crane power-transmission circuits

Industrial press and forming machinery — Pratissoli pump assemblies with ZR1X regulating valves (400 bar) for closed-loop pressure control in metal-working and rubber-molding lines

Mining and aggregates processing — Long-duty SS and SN series pumps (130–160 bar) supplying conveyor drives, screen shakers, and mobile crusher circuits

Oil and gas transfer and metering — Pratissoli regulating-valve models (H168A, R1/200) in skid-mounted pump packages for fluid loading, injection, and line-pressure stabilization

Spare Parts & Repair Kits

Official SN7070 parts list — 136 parts, 45 available in catalog

Official Parts List

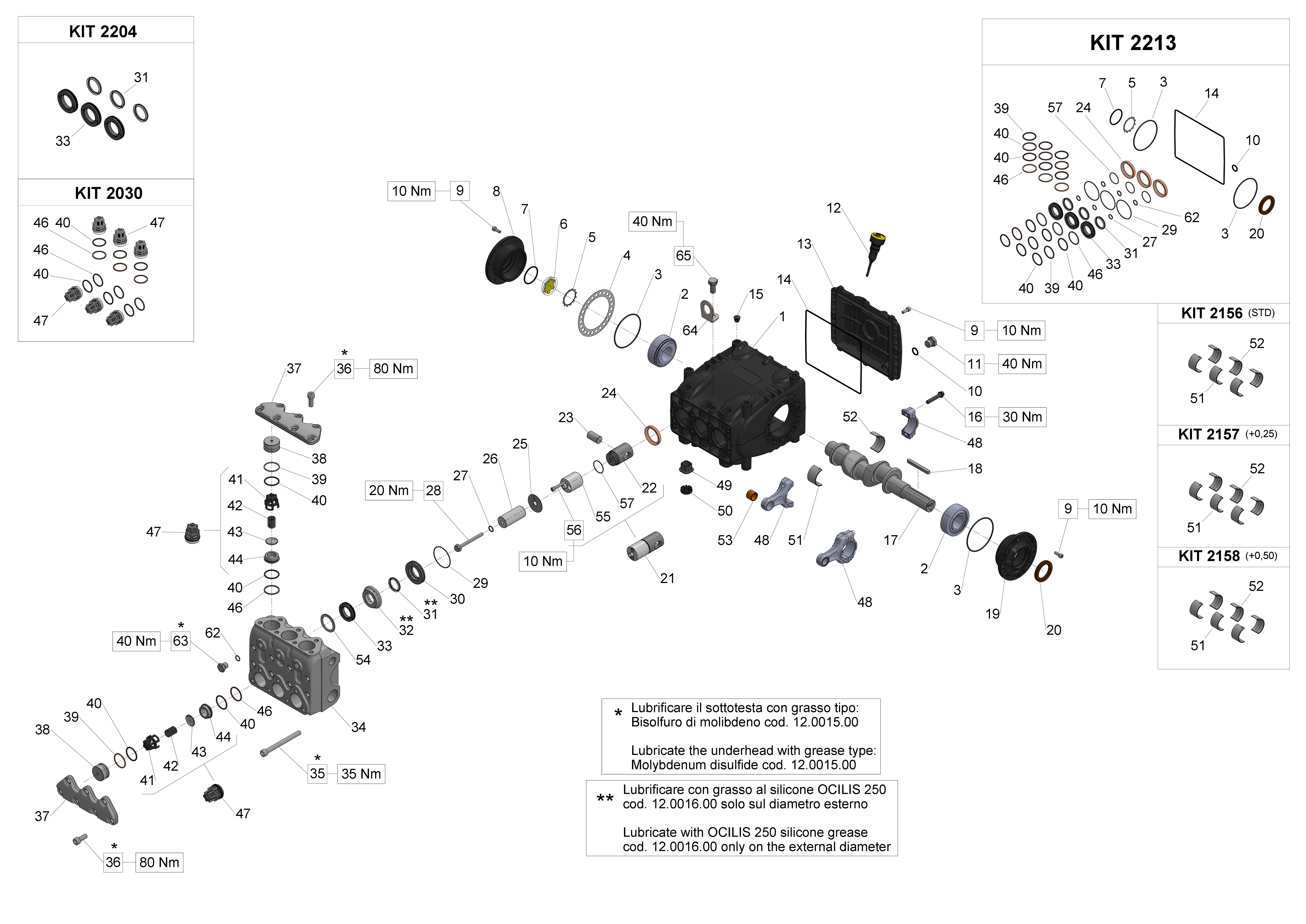

SN7070 — Male shaft (key) - GAS exploded diagram

Repair Kits — Order These for Routine Maintenance

KIT2156

KIT 2156*CONROD BUSHING

34215601×1Available
