Pratissoli PUMP SN7045 R

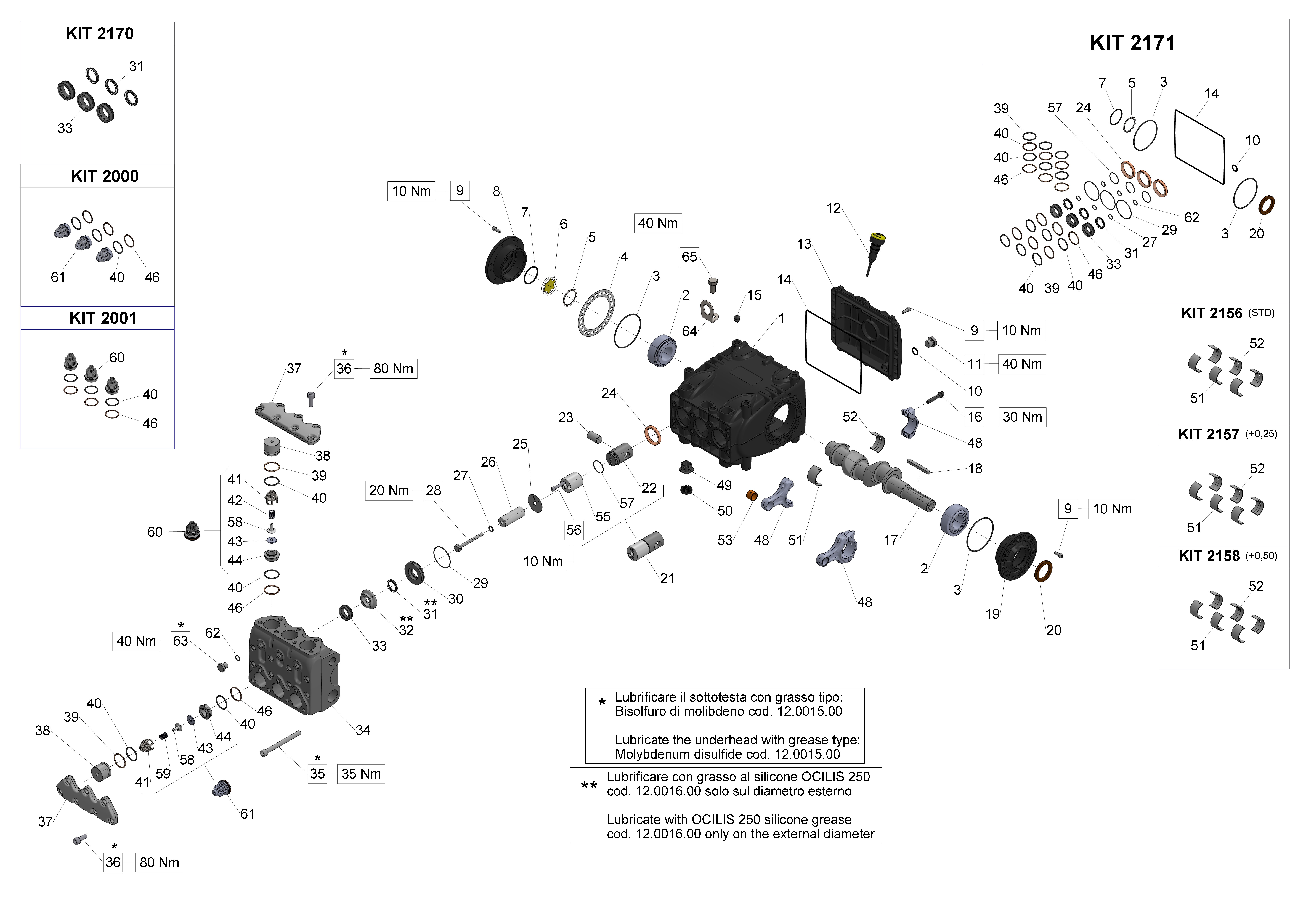

TS1636 TECHNICAL INFORMATION Flow (L/min) 36 Flow (US Gpm) 9,51 Rotation regime (rpm) 1750 Pressure (MPa) 16 Pressure (bar) 160 Pressure (psi) 2320 Power (hp) 15 Power (kW) 11,02 Overall dimensions L x l x h (mm) 327x236x180 Weight (kg) 15 TS1636 3/21/2026 Page 1 - 8 Copyright INTERPUMP GROUP S.P.A TS1636 Documents Male shaft (key) Male shaft (key) - vers. ATEX TS1636 3/21/2026 Page 2 - 8 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) TS1636 3/21/2026 Page 3 - 8 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) Pos. Code Description Qty Notes KIT6 34000601 KIT 6 PISTON BOLT 1 KIT3 34000301 KIT 3 OIL SEAL D.30X55X7 1 KIT29 34002901 KIT 29 COMPL.SEAL FOR 1 PIST.D22 KIT2 34000201 KIT 2 OIL SEAL D. 22X32X5,5 1 KIT169 34016901 KIT 169 INTAKE/DEL.VALVE (66) 1 KIT149 34014901 KIT 149 INT.RING D.22 1 W/RESTOP KIT148 34014801 KIT 148 SEAL D.22X35 1 KIT14 34001401 KIT 14 PACKING RETAINER D.22 1 KIT11 34001101 KIT 11 HEAD RING D. 22 1 54 96738000 WASHER 17,5X23X1,5 1 53 98210000 PLUG G3/8X13 1 52 96770000 WASHER 26,5X32X1,5 1 51 98226800 PLUG G3/4X16 1 50 46100051 HEAD RING D. 22 3 49 90272500 PACKING 22x35 3 48 90273000 RESTOP RING D.22 TYPE 6/1 3 47 47217070 INTERMEDIATE RING 3 D.22-RESTOP 46 90272800 PACKING 22X35X9 LP 3 45 47080670 PACKING RETAINER D. 22x35 3 44 90361600 O-RING 34,65X1,78 (2137) 3 43 99364400 SCREW M 10x18-5931 4 42 96710600 WASHER 10,2 4 41 47200074 PUMP FOOT 2 40 90164800 OIL SEAL 30x55x7 1 40 97567800 SHIM D.74,5X104X0,1 1 39 97568000 SHIM D.74.5X104X0.3 1 38 47151022 OPEN SIDE COVER (47-66) 1 37 47219566 PISTON SCREW 3 36 96728000 WASHER 14X18,5X0,5 3 35 90506700 ANTI-EXTRUSION RING 3 34 47040509 PISTON D. 22x50 3 33 96728600 WASHER 14X28X0,5 3 32 47225570 SPACER D.14X20.5X2.5 3 31 90055700 CIRCLIP D.12 UNI 7435 6 30 97738000 CONNECTING-ROD PIN 3 D.13X35,5 29 47221301 OIL SIGHT GLASS ASSY G3/4 1 TS1636 3/21/2026 Page 4 - 8 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) Pos. Code Description Qty Notes 28 98204250 PLUG G1/4"x12 1 27 90358500 O-RING 10,82X1,78 (2043) 4 26 99188400 SCREW M 6x20 UNI 5931 5 25 47160622 CRANKCASE COVER 1 24 99309900 SCREW M 8x35 UNI 5931 6 23 47030001 CONNECTING ROD 3 22 47050466 PISTON GUIDE - S.S. 3 21 91489200 KEY 8(h9)X7X35 UNI 6604/A 1 20 47022335 CRANKSHAFT C. 19 1 19 90392200 O-RING D.133.02X 2,62(3525) 1 18 47010822 CRANKCASE 1 17 98210600 OIL DIP-STICK G3/8X80 1 16 90912600 BUSHING 22X25X30 3 15 90162500 OIL SEAL 22x32x5 3 14 91837500 TAPER BEARING 2 13 90391300 O-RING 67,95X2,62 (3268) 2 12 47151122 CLOSED SIDE COVER (47-66) 1 11 99303900 SCREW M 8x16 UNI 5931 8 10 36712701 INTAKE/DEL.VALVE ASSY(66) 6 9 98230000 PLUG M32X1,5X17,5 6 8 90386400 O-RING D.28.25x2.62 90sh(3112) 6 7 36203551 VALVE CAGE 6 6 94738800 SPRING Dm. 10x18.5 6 5 36203476 SPHERICAL VALVE 6 4 36203366 VALVE SEAT 6 3 90385700 O-RING 23,81X2,62 (132) 6 2 99322000 SCREW M8X75 UNI5931 12.9 8 1 47123041 PUMP MANIFOLD 1 TS1636 3/21/2026 Page 5 - 8 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) - vers. ATEX TS1636 3/21/2026 Page 6 - 8 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) - vers. ATEX Pos. Code Description Qty Notes KIT6 34000601 KIT 6 PISTON BOLT 1 KIT3 34000301 KIT 3 OIL SEAL D.30X55X7 1 KIT29 34002901 KIT 29 COMPL.SEAL FOR 1 PIST.D22 KIT2 34000201 KIT 2 OIL SEAL D. 22X32X5,5 1 KIT169 34016901 KIT 169 INTAKE/DEL.VALVE (66) 1 KIT149 34014901 KIT 149 INT.RING D.22 1 W/RESTOP KIT148 34014801 KIT 148 SEAL D.22X35 1 KIT14 34001401 KIT 14 PACKING RETAINER D.22 1 KIT11 34001101 KIT 11 HEAD RING D. 22 1 60 99180900 SCREW M06X10 5931 A2-70 1 59 96693950 WASHER 6.4x11.0x0.7 D6798A 1 INOX 57 90387700 O-RING 39,34X2,62 (3156) 1 56 70211751 1 55 90075500 STOP RING J45 UNI7437 1 54 96738000 WASHER 17,5X23X1,5 1 53 98210000 PLUG G3/8X13 1 52 96770000 WASHER 26,5X32X1,5 1 51 98226800 PLUG G3/4X16 1 50 46100051 HEAD RING D. 22 3 49 90272500 PACKING 22x35 3 48 90273000 RESTOP RING D.22 TYPE 6/1 3 47 47217070 INTERMEDIATE RING 3 D.22-RESTOP 46 90272800 PACKING 22X35X9 LP 3 45 47080670 PACKING RETAINER D. 22x35 3 44 90361600 O-RING 34,65X1,78 (2137) 3 43 99364400 SCREW M 10x18-5931 4 42 96710600 WASHER 10,2 4 41 47200074 PUMP FOOT 2 40 90164800 OIL SEAL 30x55x7 1 40 97567800 SHIM D.74,5X104X0,1 1 39 97568000 SHIM D.74.5X104X0.3 1 38 47151022 OPEN SIDE COVER (47-66) 1 37 47219566 PISTON SCREW 3 36 96728000 WASHER 14X18,5X0,5 3 35 90506700 ANTI-EXTRUSION RING 3 34 47040509 PISTON D. 22x50 3 TS1636 3/21/2026 Page 7 - 8 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) - vers. ATEX Pos. Code Description Qty Notes 33 96728600 WASHER 14X28X0,5 3 32 47225570 SPACER D.14X20.5X2.5 3 31 90055700 CIRCLIP D.12 UNI 7435 6 30 97738000 CONNECTING-ROD PIN 3 D.13X35,5 29 98226600 PLUG G3/4X16 S.S. 1 28 98203600 PLUG G1/4x8 FOR PROBE D.6 1 S.S. 27 90358500 O-RING 10,82X1,78 (2043) 4 26 99188400 SCREW M 6x20 UNI 5931 5 25 47160622 CRANKCASE COVER 1 24 99309900 SCREW M 8x35 UNI 5931 6 23 47030001 CONNECTING ROD 3 22 47050466 PISTON GUIDE - S.S. 3 21 91489200 KEY 8(h9)X7X35 UNI 6604/A 1 20 47022335 CRANKSHAFT C. 19 1 19 90392200 O-RING D.133.02X 2,62(3525) 1 18 47010822 CRANKCASE 1 17 98210700 OIL DIPSTICK G3/8X64 1 D4+FILTER ATEX 16 90912600 BUSHING 22X25X30 3 15 90162500 OIL SEAL 22x32x5 3 14 91837500 TAPER BEARING 2 13 90391300 O-RING 67,95X2,62 (3268) 2 12 47151322 SIDE CRANKCASE COVER (ATEX) 1 11 99303900 SCREW M 8x16 UNI 5931 8 10 36712701 INTAKE/DEL.VALVE ASSY(66) 6 9 98230000 PLUG M32X1,5X17,5 6 8 90386400 O-RING D.28.25x2.62 90sh(3112) 6 7 36203551 VALVE CAGE 6 6 94738800 SPRING Dm. 10x18.5 6 5 36203476 SPHERICAL VALVE 6 4 36203366 VALVE SEAT 6 3 90385700 O-RING 23,81X2,62 (132) 6 2 99322000 SCREW M8X75 UNI5931 12.9 8 1 47123041 PUMP MANIFOLD 1 TS1636 3/21/2026 Page 8 - 8 Copyright INTERPUMP GROUP S.P.A
