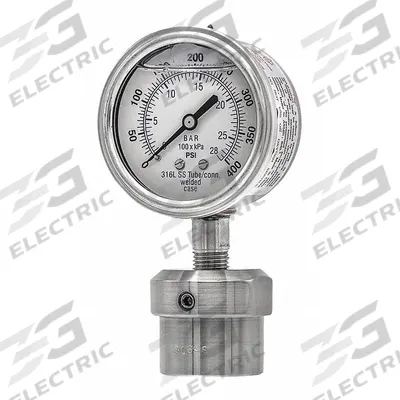

PIC GAUGES Pressure Gauge with Diaphragm Seal: 0 psi to 400 psi, 301L/0JJJ, 2 1/2 in Dial
The PIC GAUGES Pressure Gauge with Diaphragm Seal is a dial pressure gauge with a 316 SS female-threaded mini-seal, covering a 0 psi to 400 psi range. It features a 2 1/2 in dial, glycerin gauge case liquid and seal…
SKU 3G-OTH-174928
Need installation or engineering help?
Ask a question
Product Description
The PIC GAUGES Pressure Gauge with Diaphragm Seal is a dial pressure gauge with a 316 SS female-threaded mini-seal, covering a 0 psi to 400 psi range. It features a 2 1/2 in dial, glycerin gauge case liquid and seal fill liquid, with an accuracy of ±2-1-2%. The gauge wetted parts are stainless steel, and the seal lower housing is made of 316 stainless steel.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the PIC GAUGES pressure gauge with diaphragm seal used for?
This PIC GAUGES dial pressure gauge with a 316 SS female-threaded mini-seal is used to measure pressure in industrial processes where the media is corrosive or viscous. The diaphragm seal isolates the gauge from the process fluid, making it suitable for chemical, petrochemical, and water treatment applications.
What are the specifications of the PIC GAUGES 301L254I/0JJJ100 pressure gauge?
The PIC GAUGES 301L254I/0JJJ100 has a 2 1/2 in dial, 0 psi to 400 psi range, ±2-1-2% accuracy, and glycerin fill in both the gauge case and seal. The seal lower housing is 316 stainless steel, and gauge wetted parts are stainless steel. It is a 301L/0JJJ type with a 316 SS female-threaded mini-seal.
Where to buy the PIC GAUGES 301L254I/0JJJ100 pressure gauge worldwide?
You can source the PIC GAUGES 301L254I/0JJJ100 pressure gauge from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time.
How to install a PIC GAUGES pressure gauge with diaphragm seal?
Install the PIC GAUGES pressure gauge by mounting the 316 SS mini-seal directly to the process connection using compatible thread sealant. Ensure the diaphragm is not damaged during handling. Fill the system with glycerin as specified. Avoid overtightening. For best accuracy, mount the gauge vertically and isolate from vibration.
