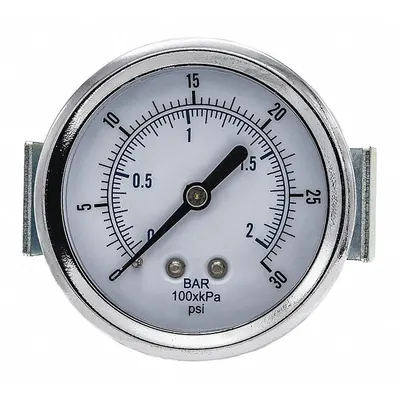

PIC GAUGES U-Clamp Panel-Mount Pressure Gauge - U-Clamp Panel-Mount with Copper Wetted Parts
PIC GAUGESU-Clamp Panel-Mount with Copper Wetted Parts

PIC GAUGES U-Clamp Panel-Mount Pressure Gauge

The PIC GAUGES Industrial Pressure Gauge (MPN 103D-258C) is a U-Clamp Panel-Mount gauge with a 0 psi to 30 psi range, 2 1/2 in dial, and 1/8 in NPT Male center back connection. It features brass/copper wetted parts…

SKU 3G-OTH-175247

Also listed as: 103D258C · 103D 258C

Brand
PIC GAUGES
Item
U-Clamp Panel-Mount Pressure Gauge
Category
U-Clamp Panel-Mount with Copper Wetted Parts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support — the Philippines

Delivery
5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment
Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to
Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

PIC GAUGES
Manufacturer Part Number
103D-258C
Type
Center Back
Dial
2 1/2 in
Accuracy
±3-2-3%
NPT Male
1/8 in
Gauge Wetted Parts
Brass / Copper
Vibration Resistance Properties
None

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

PIC GAUGES Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The PIC GAUGES Industrial Pressure Gauge (MPN 103D-258C) is a U-Clamp Panel-Mount gauge with a 0 psi to 30 psi range, 2 1/2 in dial, and 1/8 in NPT Male center back connection. It features brass/copper wetted parts and an accuracy of ±3-2-3%, with no vibration resistance properties.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the PIC GAUGES 103D-258C pressure gauge used for?

The PIC GAUGES 103D-258C is a U-Clamp Panel-Mount industrial pressure gauge used to measure pressure from 0 psi to 30 psi in non-vibrating systems. Its brass/copper wetted parts make it suitable for air, water, oil, and compatible non-corrosive media in general industrial applications.

What are the specifications of the PIC GAUGES 103D-258C?

The PIC GAUGES 103D-258C has a 2 1/2 in dial, 1/8 in NPT Male center back connection, and a range of 0 psi to 30 psi. Accuracy is ±3-2-3%, wetted parts are brass/copper, and it has no vibration resistance properties. The MPN is 103D-258C.

Where to buy the PIC GAUGES 103D-258C pressure gauge worldwide?

3G Electric supplies the PIC GAUGES 103D-258C pressure gauge worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this PIC GAUGES model.

How to install a U-Clamp panel-mount pressure gauge?

To install a U-Clamp panel-mount gauge like the PIC GAUGES 103D-258C, cut a mounting hole per the gauge dimensions, insert the gauge from the front, and secure it with the U-clamp from behind. Apply thread sealant to the 1/8 in NPT Male connection and tighten to prevent leaks.

Used in

Common applications for PIC GAUGES
Hydraulic system monitoring — PIC GAUGES 103D series panel-mount gauges for 0–3,000 psi oil pressure indication
Corrosive chemical processing — PIC GAUGES 301L series with 316 SS diaphragm seal for 0–600 psi acid line measurement
Pneumatic control panels — PIC GAUGES 104D series front-flange gauges for 0–600 psi compressed air systems
Viscous fluid transfer — PIC GAUGES 301L series with glycerin-filled seal for 0–200 psi slurry or polymer lines
Steam or condensate lines — PIC GAUGES 301L series with 316 SS mini-seal for 0–160 psi steam pressure monitoring
Water treatment plant — PIC GAUGES 103D series U-clamp gauges for 0–1,000 psi pump discharge pressure
