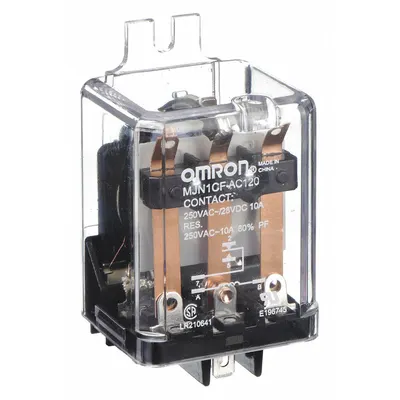

OMRON Flange Mount Relay: Surface (Side Flange) Mounted, 10 A Current Rating
The OMRON MJN Series Flange Mount Relay is a surface (side flange) mounted relay with a square base and quick-connect terminal electrical connection. It features a single-pole double-throw (SPDT) configuration and an…
SKU 3G-OTH-36944
Also listed as: MJN1CFAC120 · MJN1CF AC120
Local availability & support — the Philippines
- Delivery
- 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
- Payment
- Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
- Ships to
- Manila, Quezon City, Cebu, Davao, Batangas
Need installation or engineering help?
Ask a question
Product Description
The OMRON MJN Series Flange Mount Relay is a surface (side flange) mounted relay with a square base and quick-connect terminal electrical connection. It features a single-pole double-throw (SPDT) configuration and an operating current of 10 A at 240V AC (inductive load) with a 120V AC coil voltage. This relay is designed for side flange mounting and is identified by manufacturer part number MJN1CF-AC120.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the OMRON MJN1CF-AC120 flange mount relay used for?
The OMRON MJN1CF-AC120 is a surface-mounted relay used for switching inductive loads in industrial control panels, HVAC systems, and automation equipment. Its SPDT configuration and 10 A rating at 240V AC make it suitable for motor starters, solenoid valves, and lighting contactors where reliable side-flange mounting is required.
What are the specifications of the OMRON MJN1CF-AC120 relay?
The OMRON MJN1CF-AC120 is a side-flange mounted relay with a square base and quick-connect terminals. It has a 120V AC coil voltage, SPDT contact configuration, and an operating current of 10 A at 240V AC (inductive load). It is part of the MJN Series and uses a surface-mounting style.
Where to buy the OMRON MJN1CF-AC120 relay worldwide?
You can source the OMRON MJN1CF-AC120 relay worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we supply genuine OMRON components for industrial applications.
How to install the OMRON MJN1CF-AC120 flange mount relay?
To install the OMRON MJN1CF-AC120, mount it securely using the side flange holes onto a flat surface. Connect wires to the quick-connect terminals per the wiring diagram, ensuring the coil voltage matches 120V AC. Use proper torque on terminals and verify the SPDT contacts are correctly wired for your load circuit.
