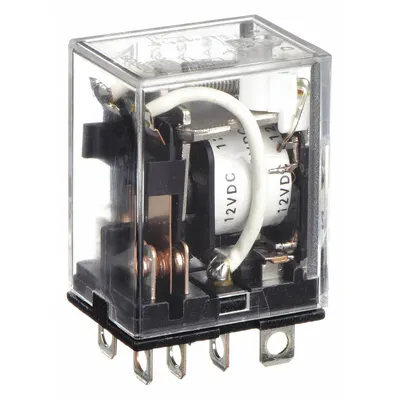

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 12V DC, DPDT
The OMRON General Purpose Relay: Socket Mounted (SKU 3G-OTH-36766, MPN LY2N-DC12) is a plug-in relay from the LY Series with a square base and flat pins. It features a DPDT contact configuration, a 12V DC coil, and…
SKU 3G-OTH-36766
Also listed as: LY2NDC12 · LY2N DC12
Local availability & support — the Philippines
- Delivery
- 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
- Payment
- Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
- Ships to
- Manila, Quezon City, Cebu, Davao, Batangas
Need installation or engineering help?
Ask a question
Product Description
The OMRON General Purpose Relay: Socket Mounted (SKU 3G-OTH-36766, MPN LY2N-DC12) is a plug-in relay from the LY Series with a square base and flat pins. It features a DPDT contact configuration, a 12V DC coil, and an operating current of 10 A at 24V DC (resistive load). The relay uses quick-connect electrical connections and is designed for socket mounting.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the OMRON LY2N-DC12 relay used for?
The OMRON LY2N-DC12 is a general-purpose relay used for switching loads in industrial control panels, automation systems, and machinery. Its DPDT contacts and 10 A rating at 24V DC make it suitable for motor starters, conveyor controls, and HVAC equipment where reliable plug-in socket mounting is required.
What are the specifications of the OMRON LY2N-DC12 relay?
The OMRON LY2N-DC12 is a DPDT relay with a 12V DC coil, 10 A current rating at 24V DC (resistive load), and 8 flat pins. It features a square base, plug-in mounting, and quick-connect terminals. Part of the LY Series, it is designed for socket-mounted industrial applications.
Where to buy the OMRON LY2N-DC12 relay worldwide?
3G Electric supplies the OMRON LY2N-DC12 relay worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we source and deliver this LY Series relay to any country.
How to install the OMRON LY2N-DC12 relay?
To install the OMRON LY2N-DC12, ensure the coil voltage matches your 12V DC supply. Plug the relay into a compatible square-base socket with flat-pin receptacles, using quick-connect terminals. Verify wiring per the DPDT contact diagram and test operation before energizing the circuit.
