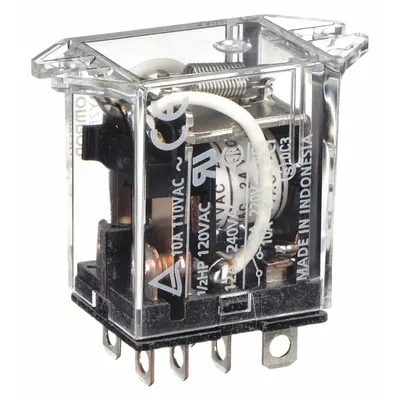

OMRON Flange Mount Relay: Surface (Top Flange) Mounted, 10 A Current Rating, 24V AC
The OMRON Flange Mount Relay is a surface-mounted relay from the LY Series, featuring a top flange mounting style and a square base. It is rated for 10 A at 24V DC (resistive load) and uses a plug-in terminal…
SKU 3G-OTH-36402
Also listed as: LY2FAC24 · LY2F AC24
Local availability & support — the Philippines
- Delivery
- 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
- Payment
- Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
- Ships to
- Manila, Quezon City, Cebu, Davao, Batangas
Need installation or engineering help?
Ask a question
Product Description
The OMRON Flange Mount Relay is a surface-mounted relay from the LY Series, featuring a top flange mounting style and a square base. It is rated for 10 A at 24V DC (resistive load) and uses a plug-in terminal electrical connection. This DPDT relay operates with 24V AC and is identified by manufacturer part number LY2F-AC24.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the OMRON Flange Mount Relay used for?
The OMRON Flange Mount Relay is used for switching industrial loads in control panels, automation systems, and machinery. Its DPDT configuration and 10 A rating suit resistive loads in HVAC, conveyor, and packaging equipment. The top flange mount allows secure panel installation.
What are the specifications of the OMRON LY2F-AC24 relay?
The OMRON LY2F-AC24 is a DPDT relay from the LY Series with a square base and top flange mounting. It operates on 24V AC, carries 10 A at 24V DC (resistive load), and uses plug-in terminals. The manufacturer part number is LY2F-AC24.
Where to buy the OMRON LY2F-AC24 relay worldwide?
You can source the OMRON LY2F-AC24 relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time.
How to install the OMRON flange mount relay?
Mount the relay on a flat surface using the top flange holes. Ensure the plug-in terminal base is clean and aligned. Wire according to the DPDT coil and contact ratings (24V AC, 10 A resistive). Torque terminal screws to manufacturer recommendations and test operation before energizing the circuit.
Used in
Common applications for OMRONOMRON Products
3G Electric supplies OMRON surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
