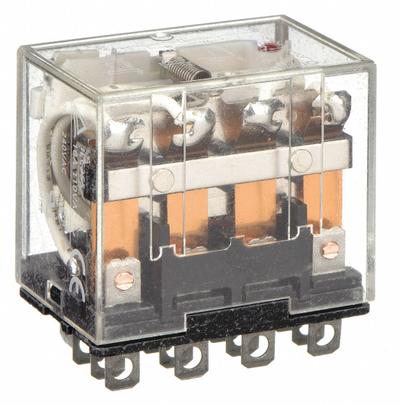

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V AC, 4PDT

The OMRON General Purpose Relay: Socket Mounted is a plug-in relay from the LY Series with a square base and flat pins. It features a 4PDT contact configuration, a 10 A current rating at 24V AC, and an operating…

SKU 3G-OTH-37673

Brand

OMRON

Item

General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V AC, 4PDT

Category

Socket-Mounted Relays

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

OMRON

Manufacturer Part Number

LY4N-AC24

Series

LY Series

Type

4PDT

AC

24V

Base Type

Square

Pin Shape

Flat

Current Rating

10 A

Mounting Style

Plug-In

Pins/Terminals

14

Operating Current

5 A at 24V DC (Inductive Load)

Electrical Connection

Plug-In

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

OMRON Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON General Purpose Relay: Socket Mounted is a plug-in relay from the LY Series with a square base and flat pins. It features a 4PDT contact configuration, a 10 A current rating at 24V AC, and an operating current of 5 A at 24V DC for inductive loads. The relay uses a plug-in electrical connection and has 14 pins/terminals.
