OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 120V AC, 3PDT - Socket-Mounted Relays
OMRONSocket-Mounted Relays

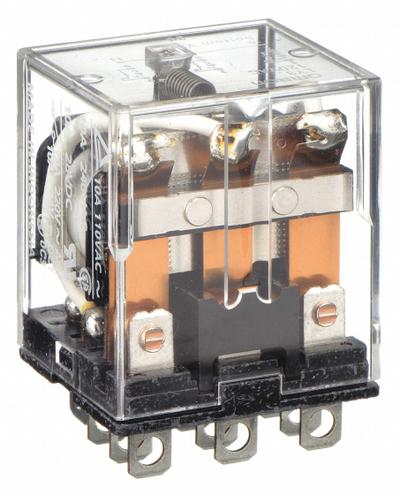

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 120V AC, 3PDT

The OMRON LY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. This 3PDT relay features a 10 A current rating at 120V AC and uses quick-connect electrical connections…

SKU 3G-OTH-39813

Brand
OMRON
Item
General Purpose Relay: Socket Mounted, 10 A Current Rating, 120V AC, 3PDT
Category
Socket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMRON
Manufacturer Part Number
LY3-AC120
Series
LY Series
Type
3PDT
AC
120V
Base Type
Square
Pin Shape
Flat
Current Rating
10 A
Mounting Style
Plug-In
Pins/Terminals
11
Electrical Connection
Quick-Connect
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON LY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. This 3PDT relay features a 10 A current rating at 120V AC and uses quick-connect electrical connections with 11 pins/terminals (MPN LY3-AC120).
