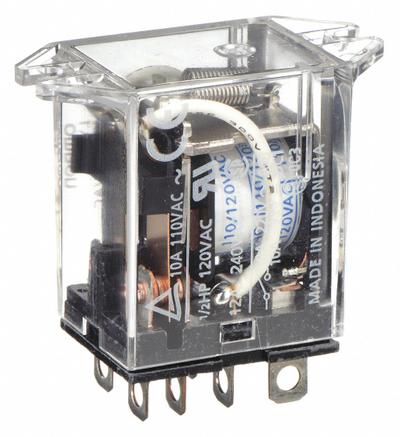

OMRON Flange Mount Relay: Surface (Top Flange) Mounted, 10 A Current Rating, 120V AC - Surface-Mounted Relays
OMRONSurface-Mounted Relays

OMRON Flange Mount Relay: Surface (Top Flange) Mounted, 10 A Current Rating, 120V AC

The OMRON LY Series Flange Mount Relay is a surface-mounted relay with a top flange mounting style and a square base. It features a DPDT contact configuration, a 10 A current rating at 120V AC, and an operating…

SKU 3G-OTH-36963

Brand
OMRON
Item
Flange Mount Relay: Surface
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMRON
Manufacturer Part Number
LY2F-AC110/120
Series
LY Series
Type
DPDT
AC
120V
Base Type
Square
Current Rating
10 A
Mounting Style
Top Flange
Operating Current
7.5 A at 110V AC (Inductive Load)
Electrical Connection
Plug-In Terminal
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON LY Series Flange Mount Relay is a surface-mounted relay with a top flange mounting style and a square base. It features a DPDT contact configuration, a 10 A current rating at 120V AC, and an operating current of 7.5 A at 110V AC for inductive loads. The relay uses a plug-in terminal electrical connection and is identified by manufacturer part number LY2F-AC110/120.
