OMRON Flange Mount Relay: Surface (Side Flange) Mounted, 30 A Current Rating - Surface-Mounted Relays
OMRONSurface-Mounted Relays

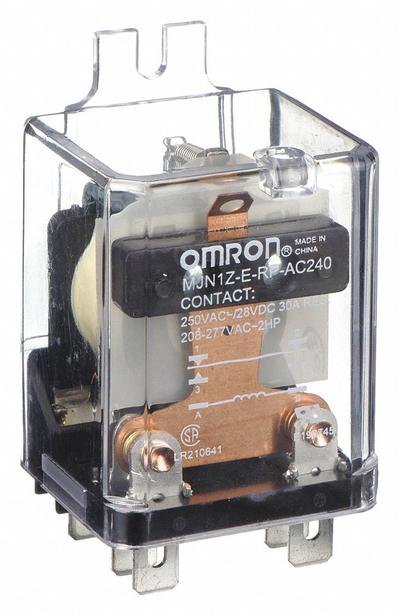

OMRON Flange Mount Relay: Surface (Side Flange) Mounted, 30 A Current Rating

The OMRON MJN Series Flange Mount Relay is a surface (side flange) mounted relay with a square base and quick-connect terminal electrical connection. It features a single-pole double-throw (SPDT) configuration and an…

SKU 3G-OTH-37798

Brand
OMRON
Item
Flange Mount Relay: Surface
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMRON
Manufacturer Part Number
MJN1Z-E-RP-AC240
Series
MJN Series
Type
SPDT
AC
240V
Base Type
Square
Current Rating
30 A
Mounting Style
Side Flange
Operating Current
30 A at 28V DC (Resistive Load)
Electrical Connection
Quick-Connect Terminal
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON MJN Series Flange Mount Relay is a surface (side flange) mounted relay with a square base and quick-connect terminal electrical connection. It features a single-pole double-throw (SPDT) configuration and an operating current of 30 A at 28V DC (resistive load) with a 240V AC rating. This relay is identified by manufacturer part number MJN1Z-E-RP-AC240.
