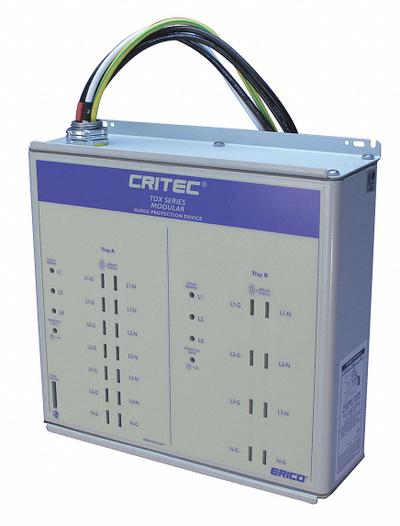

NVENT ERICO Surge Protection Device: Three Phase, 277/480V AC Wye, 320/550 V AC, Metal - External Surface-Mount SPDs
NVENT ERICOExternal Surface-Mount SPDs

NVENT ERICO Surge Protection Device: Three Phase, 277/480V AC Wye, 320/550 V AC, Metal

The NVENT ERICO TDX300S277/480 is a three-phase external surface-mount surge protection device (SPD) with a metal enclosure, rated for 277/480V AC Wye systems and a maximum continuing operating voltage of 320/550 V…

SKU 3G-OTH-21705

Brand
NVENT ERICO
Item
Surge Protection Device: Three Phase, 277/480V AC Wye, 320/550 V AC, Metal
Category
External Surface-Mount SPDs
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

NVENT ERICO
Manufacturer Part Number
TDX300S277/480
Type
Metal, 1, 300kA
AC
320/550 V
AC Wye
277/480V
Voltage
277/480V AC Wye
Includes
Voltage Free Contact
Enclosure Material
Metal
Voltage Protection Rating
1000V (N-G)
Max. Surge Current per Mode
300kA
Max. Continuing Operating Voltage
320/550 V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

NVENT ERICO Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The NVENT ERICO TDX300S277/480 is a three-phase external surface-mount surge protection device (SPD) with a metal enclosure, rated for 277/480V AC Wye systems and a maximum continuing operating voltage of 320/550 V AC. It provides a voltage protection rating of 1000V (N-G) and a maximum surge current per mode of 300kA, and includes a voltage-free contact.

Used in

Common applications for NVENT ERICO
Industrial facility grounding — NVENT ERICO ZWP1J pipe ground clamps for bonding metallic water pipes to grounding electrodes.
Commercial building surge protection — NVENT ERICO TDX300S277/480 SPD for three-phase 277/480V AC Wye service entrance panels.
Rooftop equipment support — NVENT ERICO PSF10D fixed strut pyramids for mounting conduit or cable trays on flat roofs.
Utility substation grounding — NVENT ERICO EK16 bronze parallel burial clamps for connecting grounding conductors to rods.
Outdoor panel surge protection — NVENT ERICO SES160B480Y SPD with NEMA 4X polycarbonate enclosure for washdown environments.
Lightning protection systems — NVENT ERICO SES series SPDs for transient voltage suppression on branch circuits.
